Omron

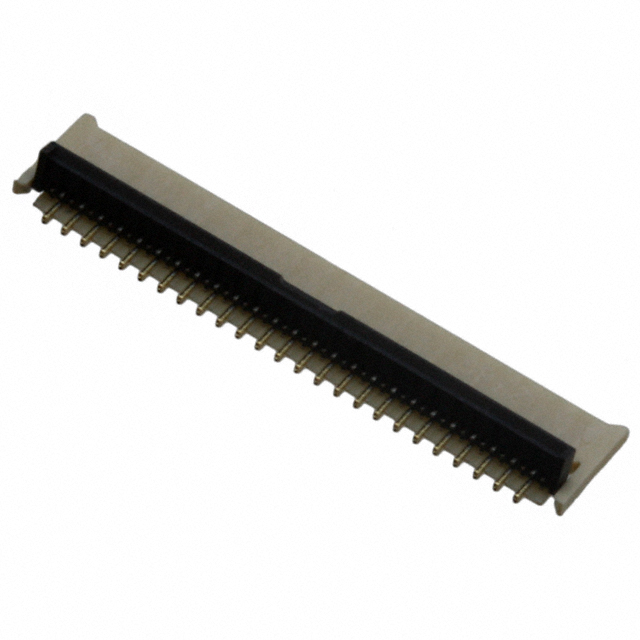

| Part Number | XF3A-515541A | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FPC TOP 51POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 3225 pcs | Data sheet | XF3A-515541A.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | XF3A | Pitch | 0.012" (0.30mm) |
| Packaging | Tape & Reel (TR) | Other Names | OR1014TR XF3A-5155-41A XF3A-5155-41A BY OMZ XF3A515541A XF3A515541ABYOMZ |
| Operating Temperature | -30°C ~ 85°C | Number of Positions | 51 |
| Mounting Type | Surface Mount, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Cycles | 10 | Material Flammability Rating | UL94 V-0 |
| Locking Feature | Rotary Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Housing Color | Natural |
| Height Above Board | 0.023" (0.59mm) | Flat Flex Type | FPC |
| Features | - | FFC, FCB Thickness | 0.12mm |
| Detailed Description | 51 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 5.90µin (0.150µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top |
| Cable End Type | Tapered | Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Color | Black |
