Omron

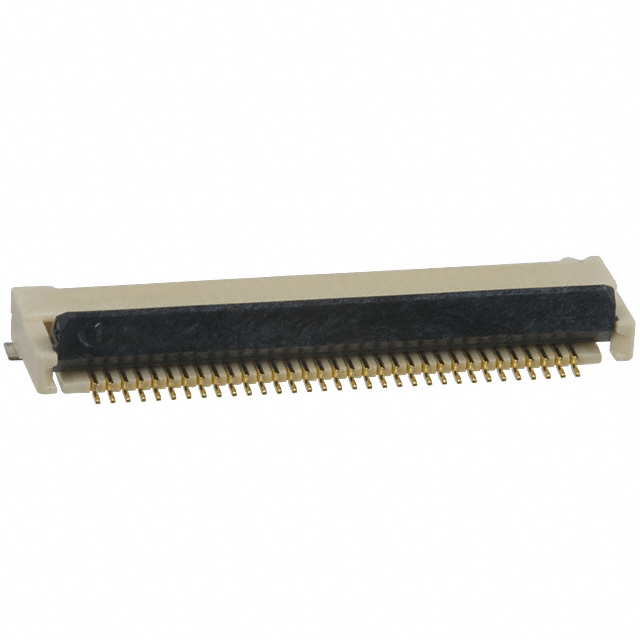

| Part Number | XF2M-3315-1A | Manufacturer | Omron |
|---|---|---|---|
| Description | CONN FPC 33POS 0.50MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 42314 pcs | Data sheet | XF2M-3315-1A.pdf |
| Voltage Rating | 50V | Termination | Solder |
| Series | XF2M | Pitch | 0.020" (0.50mm) |
| Packaging | Original-Reel® | Other Names | OR725DKR |
| Operating Temperature | -30°C ~ 85°C | Number of Positions | 33 |
| Mounting Type | Surface Mount, Right Angle | Mating Cycles | 20 |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 15 Weeks |
| Locking Feature | Rotary Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Halogen Free | Housing Color | Natural |
| Height Above Board | 0.083" (2.10mm) | Flat Flex Type | FPC |
| Features | - | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 33 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle | Current Rating | 0.5A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 5.90µin (0.150µm) |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top and Bottom |
| Cable End Type | Tapered | Actuator Material | Liquid Crystal Polymer (LCP), Halogen Free |
| Actuator Color | Black |
