VX-56-1A3

Omron

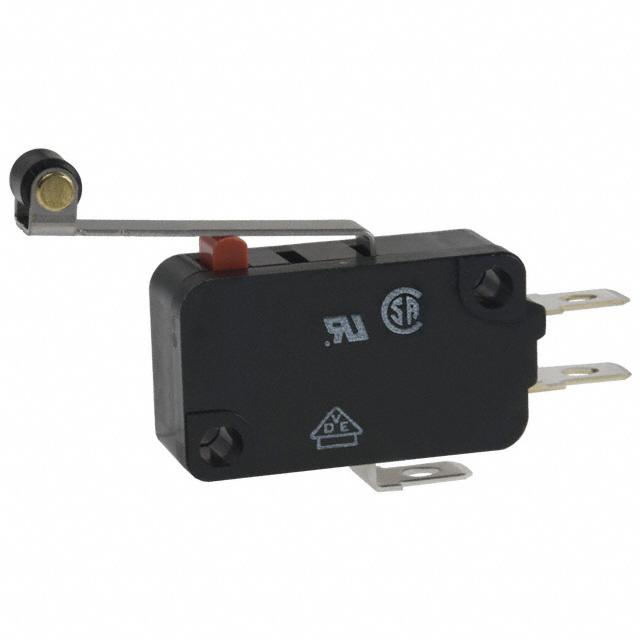

Image may be representation. See specifications for product details.

Product Overview

Part Number:	VX-56-1A3
Manufacturer/Brand:	Omron
Product description	SWITCH SNAP ACTION SPDT 5A 125V
Datasheets:	VX-56-1A3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	16779 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 16779 pcs

Reference Price (In US Dollars)

1 pcs: $1.821

10 pcs: $1.455

25 pcs: $1.383

50 pcs: $1.346

100 pcs: $1.164

300 pcs: $1.092

500 pcs: $1.037

1000 pcs: $1.001

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.821

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of VX-56-1A3

Part Number	VX-56-1A3	Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 5A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	16779 pcs	Data sheet	VX-56-1A3.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Solder, Quick Connect - 0.187" (4.7mm)	Switch Function	On-Mom
Series	VX	Release Force	-
Pretravel	0.157" (4.0mm)	Packaging	Bulk
Overtravel	0.062" (1.6mm)	Other Names	SW1002 VX-56-1A3-ND VX561A3
Operating Temperature	-25°C ~ 80°C	Operating Position	0.815" (20.7mm)
Operating Force	30gf	Mounting Type	Chassis Mount
Mechanical Life	50,000,000 Cycles	Manufacturer Standard Lead Time	10 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP40
Features	-	Electrical Life	500,000 Cycles
Differential Travel	0.031" (0.8mm)	Current Rating	5A (AC/DC)
Circuit	SPDT	Actuator Type	Lever, Roller
