Omron
| Part Number | R87F-A1A15HP | Manufacturer | Omron |
|---|---|---|---|

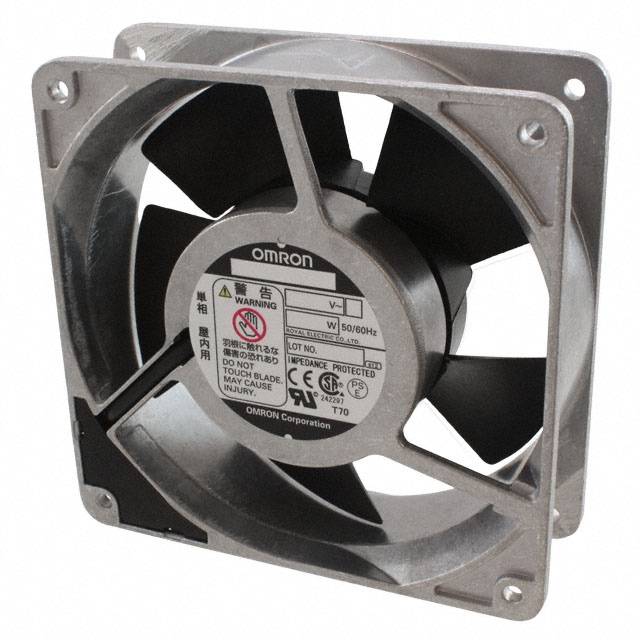

| Description | FAN AXIAL 120X38MM 100VAC TERM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1452 pcs | Data sheet | R87F-A1A15HP.pdf |
| Width | 38.00mm | Weight | 1.2 lbs (544.3g) |
| Voltage Range | - | Voltage - Rated | 100VAC |
| Termination | 2 Terminals | Static Pressure | 0.374 in H2O (93.1 Pa) |
| Size / Dimension | Square - 120mm L x 120mm H | Series | R87F |
| RPM | 2750 RPM | Power (Watts) | 15.00W |
| Other Names | R87F-A1A15HP-ND R87FA1A15HP Z3714 |
Operating Temperature | -22 ~ 158°F (-30 ~ 70°C) |
| Noise | 42.0 dB | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material - Frame | Aluminum | Material - Blade | Polycarbonate (PC) |
| Manufacturer Standard Lead Time | 1 Weeks | Lifetime @ Temp. | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fan Type | Tubeaxial |
| Current Rating | 0.220A | Bearing Type | Ball |
| Approvals | CSA, UL | Air Flow | 110.7 CFM (3.10m³/min) |
