Omron

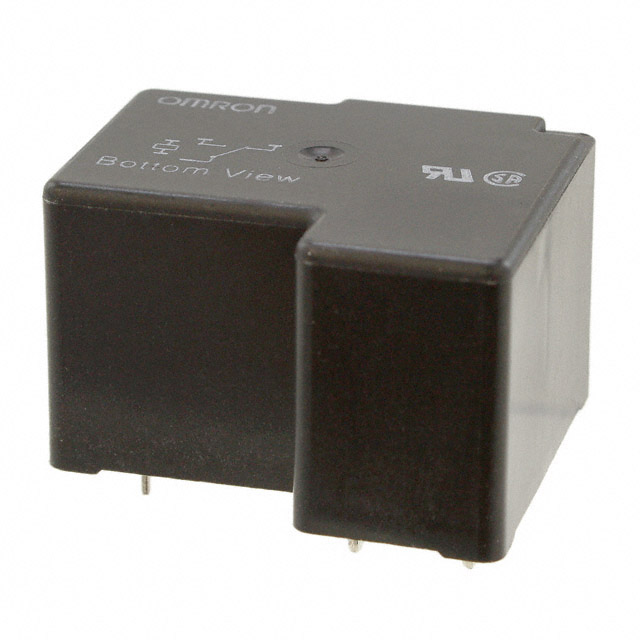

| Part Number | G8P-1C4P-V DC18 | Manufacturer | Omron |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPDT 10A 18V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5140 pcs | Data sheet | G8P-1C4P-V DC18.pdf |
| Turn On Voltage (Max) | 13.5 VDC | Turn Off Voltage (Min) | 1.8 VDC |
| Termination Style | PC Pin | Switching Voltage | 250VAC, 28VDC - Max |
| Series | G8P | Release Time | 10ms |
| Relay Type | General Purpose | Packaging | Bulk |
| Other Names | G8P-1C4P-V DC18 BY OMZ G8P-1C4P-VDC18 G8P-1C4P-VDC18-ND G8P-1C4PV-DC18BYOMZ G8P1C4PVDC18 G8P1C4PVDC18BYOMZ Z3318 |
Operating Temperature | -55°C ~ 105°C |
| Operate Time | 15ms | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Insulation - Class F, Sealed - Fully | Detailed Description | General Purpose Relay SPDT (1 Form C) 18VDC Coil Through Hole |
| Contact Rating (Current) | 10A | Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Form | SPDT (1 Form C) | Coil Voltage | 18VDC |
| Coil Type | Non Latching | Coil Resistance | 380 Ohms |
| Coil Power | 900 mW | Coil Current | 50.0mA |
