Omron

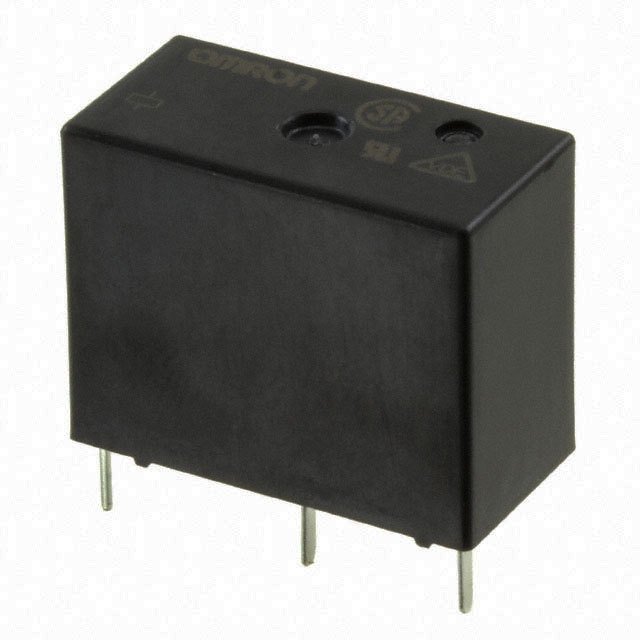

| Part Number | G5Q-1A-EU DC24 | Manufacturer | Omron |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 10A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 55100 pcs | Data sheet | G5Q-1A-EU DC24.pdf |
| Turn On Voltage (Max) | 18 VDC | Turn Off Voltage (Min) | 1.2 VDC |
| Termination Style | PC Pin | Switching Voltage | 277VAC, 30VDC - Max |
| Series | G5Q-EU | Release Time | 5ms |
| Relay Type | General Purpose | Packaging | Tube |
| Other Names | G5Q-1A-EU 24DC G5Q-1A-EU DC24-ND G5Q-1A-EU-24DC G5Q1AEU24DC G5Q1AEUDC24 Z5361 |
Operating Temperature | -40°C ~ 85°C |
| Operate Time | 10ms | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Insulation - Class F, Sealed - Flux Protection | Detailed Description | General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole |
| Contact Rating (Current) | 10A | Contact Material | Silver Alloy |
| Contact Form | SPST-NO (1 Form A) | Coil Voltage | 24VDC |
| Coil Type | Non Latching | Coil Resistance | 2.88 kOhms |
| Coil Power | 200 mW | Coil Current | 8.3mA |
