Omron

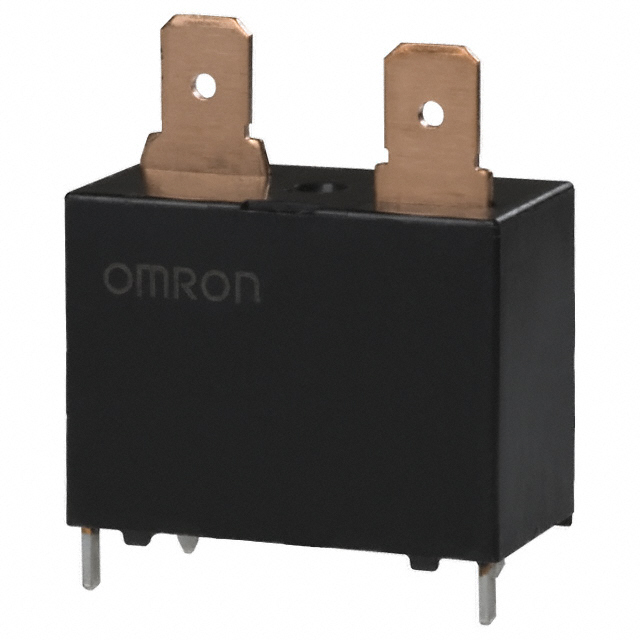

| Part Number | G4A-1A-E DC24 BY | Manufacturer | Omron |
|---|---|---|---|
| Description | RELAY GEN PURPOSE SPST 20A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 9131 pcs | Data sheet | |
| Turn On Voltage (Max) | 16.8 VDC | Turn Off Voltage (Min) | 2.4 VDC |
| Termination Style | PC Pin, Quick Connect - 0.250" (6.3mm) | Switching Voltage | 250VAC - Max |
| Series | G4A | Release Time | 10ms |
| Relay Type | General Purpose | Packaging | Tray |
| Other Names | G2RL1034D G4A 6000M G4A-1A-DC24 G4A-1A-E DC24 BY OMZ G4A-1A-E-DC24 G4A-1A-EDC24BYOMZ G4A-1A-EDC24BYOMZ-ND G4A1AE24DC G4A1AEDC24 G4A1AEDC24BYOMZ Z3102 Z953 Z953-ND |
Operating Temperature | -20°C ~ 60°C |
| Operate Time | 20ms | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Sealed - Flux Protection | Detailed Description | General Purpose Relay SPST-NO (1 Form A) 24VDC Coil Through Hole |
| Contact Rating (Current) | 20A | Contact Material | - |
| Contact Form | SPST-NO (1 Form A) | Coil Voltage | 24VDC |
| Coil Type | Non Latching | Coil Resistance | 640 Ohms |
| Coil Power | 900 mW | Coil Current | 37.5mA |
