Omron

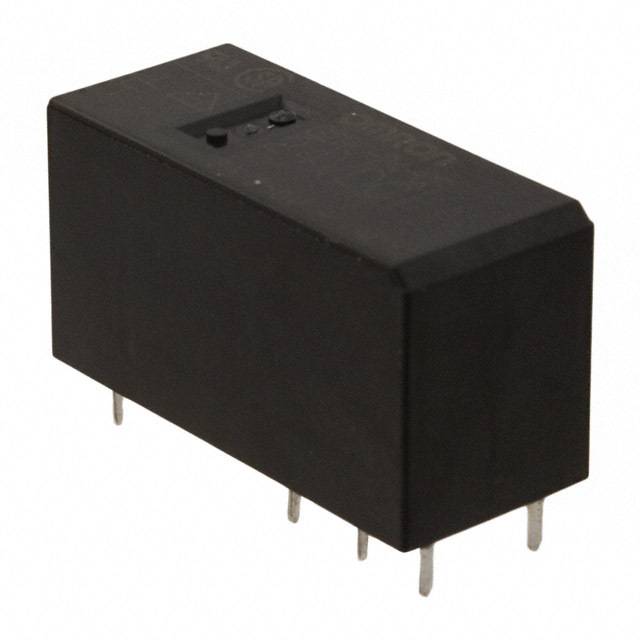

| Part Number | G2RL-24-CF DC5 | Manufacturer | Omron |
|---|---|---|---|
| Description | RELAY GENERAL PURPOSE DPDT 8A 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20076 pcs | Data sheet | G2RL-24-CF DC5.pdf |
| Turn On Voltage (Max) | 3.5 VDC | Turn Off Voltage (Min) | 0.5 VDC |
| Termination Style | PC Pin | Switching Voltage | 440VAC, 300VDC - Max |
| Series | G2RL | Release Time | 5ms |
| Relay Type | General Purpose | Packaging | Tube |
| Other Names | G2RL-24-CF DC5 BY OMB G2RL-24-CF-DC5 G2RL-24-CF-DC5-ND G2RL1086G G2RL24CF5DC G2RL24CFDC5 G2RL24CFDC5BYOMB Z3090 |
Operating Temperature | -40°C ~ 85°C |
| Operate Time | 15ms | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Insulation - Class F, Sealed - Fully | Detailed Description | General Purpose Relay DPDT (2 Form C) 5VDC Coil Through Hole |
| Contact Rating (Current) | 8A | Contact Material | Silver Alloy, Cadmium Free |
| Contact Form | DPDT (2 Form C) | Coil Voltage | 5VDC |
| Coil Type | Non Latching | Coil Resistance | 62.5 Ohms |
| Coil Power | 400 mW | Coil Current | 80.0mA |
