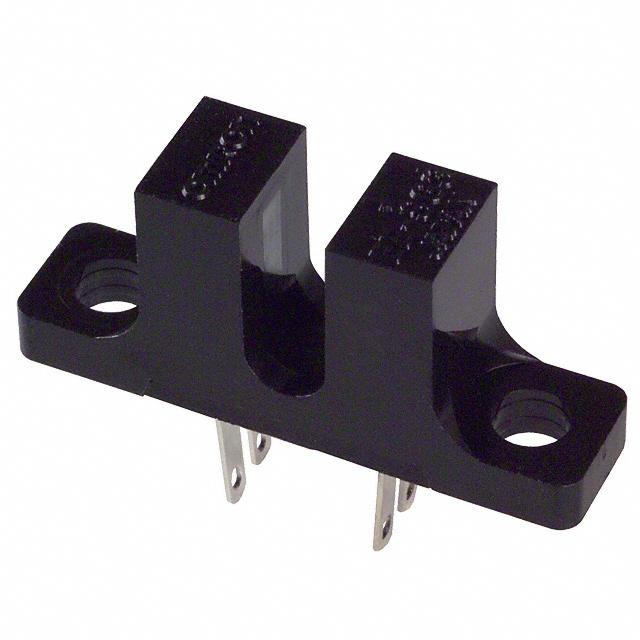

EE-SG3

Omron

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EE-SG3
Manufacturer/Brand:	Omron
Product description	SENS OPTO SLOT 3.6MM TRAN SOLDER
Datasheets:	EE-SG3.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	15058 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 15058 pcs

Reference Price (In US Dollars)

1 pcs: $1.954

5 pcs: $1.723

10 pcs: $1.522

25 pcs: $1.235

50 pcs: $1.092

100 pcs: $1.063

500 pcs: $0.89

1000 pcs: $0.833

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.954

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EE-SG3

Part Number	EE-SG3	Manufacturer	Omron
Description	SENS OPTO SLOT 3.6MM TRAN SOLDER	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	15058 pcs	Data sheet	EE-SG3.pdf
Voltage - Collector Emitter Breakdown (Max)	30V	Type	Unamplified
Series	-	Sensing Method	Transmissive
Sensing Distance	0.142" (3.6mm)	Response Time	4µs, 4µs
Packaging	Bulk	Package / Case	PCB Mount
Output Configuration	Phototransistor	Other Names	EESG3 EESG3M OR504
Operating Temperature	-25°C ~ 85°C	Mounting Type	Solder
Manufacturer Standard Lead Time	15 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Detailed Description	Optical Sensor Transmissive 0.142" (3.6mm) Phototransistor PCB Mount	Current - DC Forward (If) (Max)	50mA
Current - Collector (Ic) (Max)	20mA
