D3V-01-1A2

Omron

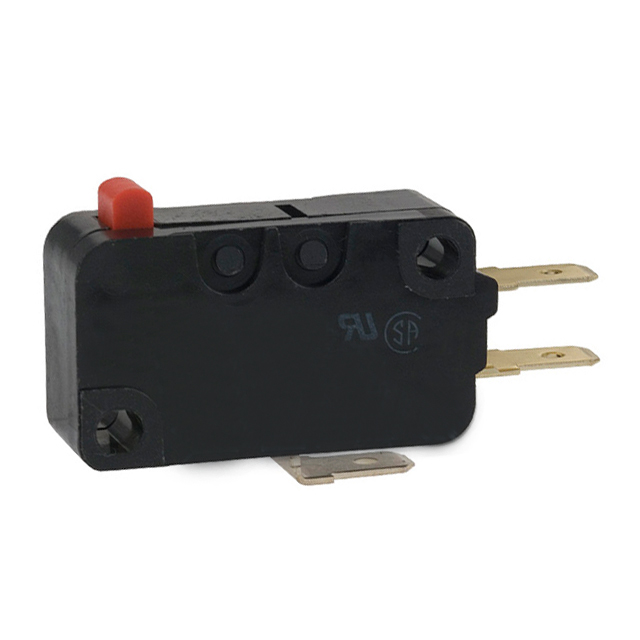

Image may be representation. See specifications for product details.

Product Overview

Part Number:	D3V-01-1A2
Manufacturer/Brand:	Omron
Product description	SWITCH SNAP ACT SPDT 100MA 125V
Datasheets:	D3V-01-1A2.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	33851 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 33851 pcs

Reference Price (In US Dollars)

1 pcs: $0.939

10 pcs: $0.866

25 pcs: $0.812

50 pcs: $0.794

100 pcs: $0.632

250 pcs: $0.595

500 pcs: $0.559

1000 pcs: $0.523

5000 pcs: $0.487

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.939

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of D3V-01-1A2

Part Number	D3V-01-1A2	Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	33851 pcs	Data sheet	D3V-01-1A2.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Solder, Quick Connect - 0.187" (4.7mm)	Switch Function	On-Mom
Series	D3V	Release Force	3.059gf
Pretravel	0.047" (1.2mm)	Packaging	Bulk
Overtravel	0.040" (1.0mm)	Other Names	D3V011A2 D3V011A2BYOMI Z4732
Operating Temperature	-25°C ~ 85°C	Operating Position	0.579" (14.7mm)
Operating Force	25gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	10,000,000 Cycles
Manufacturer Standard Lead Time	13 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP40	Features	-
Electrical Life	500,000 Cycles	Differential Travel	0.016" (0.4mm)
Current Rating	100mA (AC/DC)	Circuit	SPDT
Actuator Type	Round (Pin Plunger)
