D2SW-P2H

OmronOmron

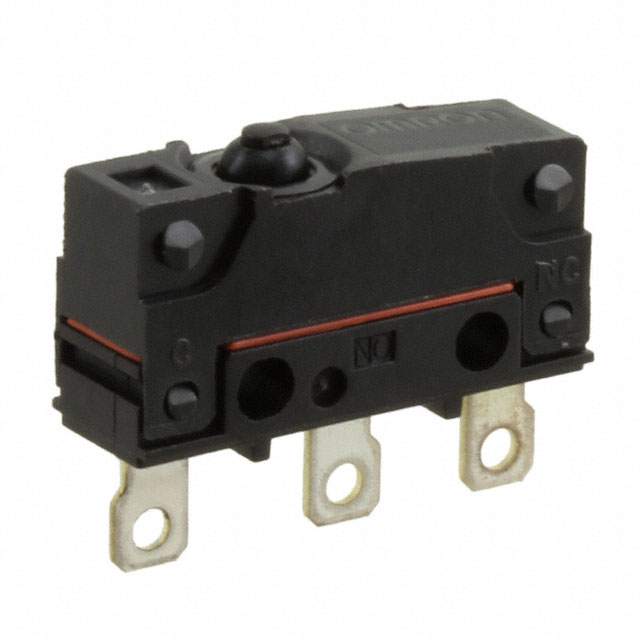

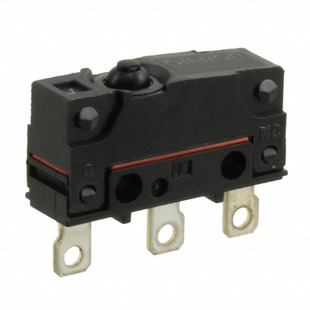

D2SW-P2H Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: D2SW-P2H
Manufacturer/Brand: Omron
Product description SWITCH SNAP ACTION SPDT 2A 250V
Datasheets: D2SW-P2H.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 48109 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
Download Product Details PDF
In Stock 48109 pcs
Reference Price (In US Dollars)
500 pcs
$0.613
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.613

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of D2SW-P2H

Part Number D2SW-P2H Manufacturer Omron
Description SWITCH SNAP ACTION SPDT 2A 250V Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 48109 pcs Data sheet D2SW-P2H.pdf
Voltage Rating - DC 30V Voltage Rating - AC 250V
Termination Style Solder Lug Switch Function On-Mom
Series D2SW-P Release Force 20gf
Pretravel 0.024" (0.6mm) Packaging Bulk
Overtravel 0.015" (0.4mm) Other Names D2SW-P2H BY OMZ
D2SW-P2H-ND
D2SWP2H
D2SWP2HBYOMZ
Z4461
Operating Temperature -20°C ~ 70°C Operating Position 0.330" (8.4mm)
Operating Force 183gf Mounting Type Chassis Mount
Mechanical Life 1,000,000 Cycles Manufacturer Standard Lead Time 19 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Ingress Protection IP67 - Dust Tight, Waterproof
Features - Electrical Life 50,000 Cycles
Differential Travel 0.006" (0.15mm) Current Rating 2A (AC/DC)
Circuit SPDT Actuator Type Round (Pin Plunger)
