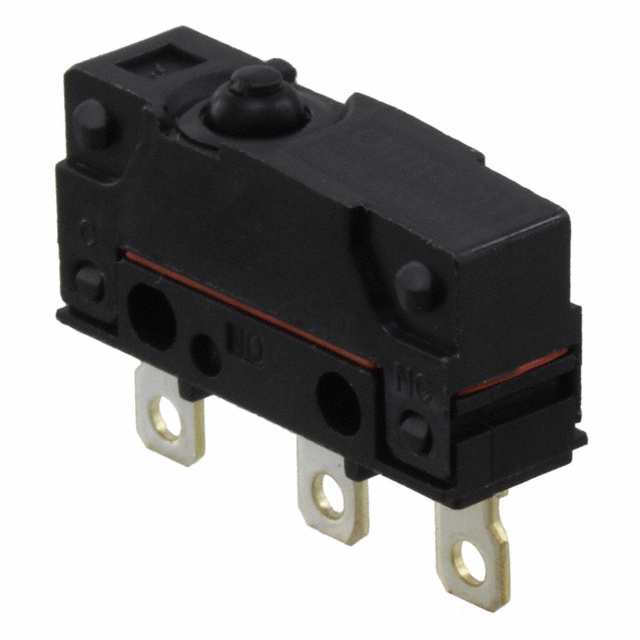

D2SW-P01H

Omron

Image may be representation. See specifications for product details.

Product Overview

Part Number:	D2SW-P01H
Manufacturer/Brand:	Omron
Product description	SWITCH SNAP ACT SPDT 100MA 125V
Datasheets:	D2SW-P01H.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	40782 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 40782 pcs

Reference Price (In US Dollars)

1 pcs: $0.788

10 pcs: $0.727

25 pcs: $0.682

50 pcs: $0.666

100 pcs: $0.53

250 pcs: $0.50

500 pcs: $0.469

1000 pcs: $0.439

5000 pcs: $0.409

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.788

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of D2SW-P01H

Part Number	D2SW-P01H	Manufacturer	Omron
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	40782 pcs	Data sheet	D2SW-P01H.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Solder Lug	Switch Function	On-Mom
Series	D2SW-P	Release Force	20gf
Pretravel	0.024" (0.6mm)	Packaging	Bulk
Overtravel	0.015" (0.4mm)	Other Names	D2SW-P01H BY OMZ D2SW-P01H-ND D2SWP01H D2SWP01HBYOMZ Z11581
Operating Temperature	-20°C ~ 70°C	Operating Position	0.330" (8.4mm)
Operating Force	183gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP67 - Dust Tight, Waterproof
Features	-	Electrical Life	200,000 Cycles
Differential Travel	0.006" (0.15mm)	Current Rating	100mA (AC/DC)
Circuit	SPDT	Actuator Type	Round (Pin Plunger)
