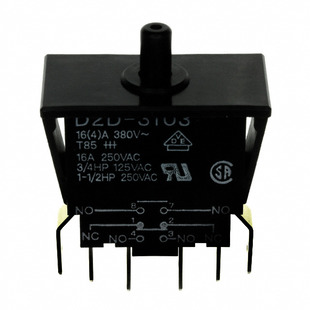

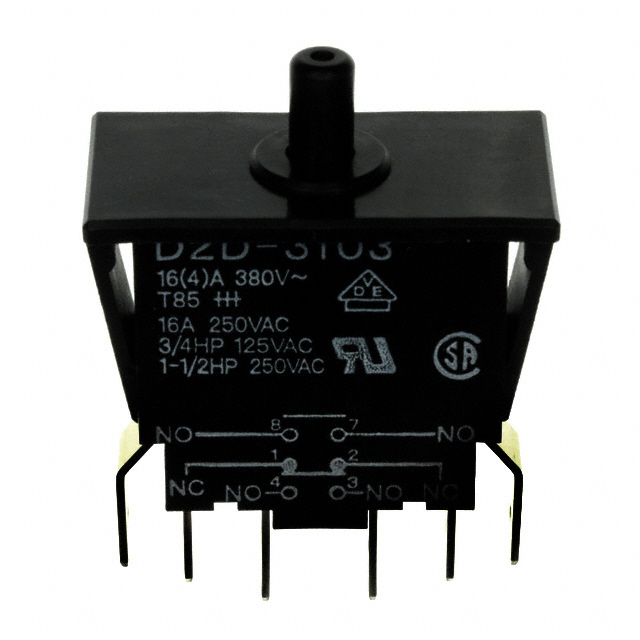

D2D-3103

Omron

Image may be representation. See specifications for product details.

Product Overview

Part Number:	D2D-3103
Manufacturer/Brand:	Omron
Product description	SWITCH SNAP ACTION SPDT 16A 250V
Datasheets:	D2D-3103.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	6132 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 6132 pcs

Reference Price (In US Dollars)

1 pcs: $5.047

10 pcs: $3.912

25 pcs: $3.706

50 pcs: $3.50

100 pcs: $3.192

250 pcs: $2.986

500 pcs: $2.883

1000 pcs: $2.78

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$5.047

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of D2D-3103

Part Number	D2D-3103	Manufacturer	Omron
Description	SWITCH SNAP ACTION SPDT 16A 250V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	6132 pcs	Data sheet	D2D-3103.pdf
Voltage Rating - AC	250V	Termination Style	Quick Connect - 0.250" (6.3mm)
Switch Function	On-Mom, Off-Mom	Series	D2D
Release Force	-	Pretravel	-
Packaging	Bulk	Overtravel	0.090" (2.3mm)
Other Names	D2D-3103 BY OMZ D2D-3103-ND D2D3103 D2D31031 D2D3103BYOMZ SSG 1056H SW1053	Operating Temperature	-25°C ~ 85°C
Operating Position	0.468" (11.9mm)	Operating Force	300gf
Mounting Type	Panel Mount, Snap-In	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mechanical Life	10,000,000 Cycles	Manufacturer Standard Lead Time	17 Weeks
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Ingress Protection	IP40
Features	-	Electrical Life	100,000 Cycles
Differential Travel	-	Current Rating	16A (AC)
Circuit	SPDT (DB/DM) + SPST-NO (DB)	Actuator Type	Round (Pin Plunger)
