Omron

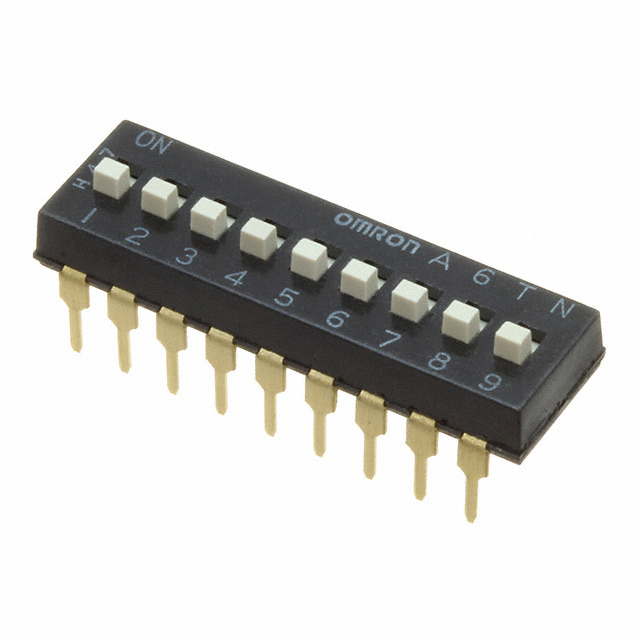

| Part Number | A6TN-9104 | Manufacturer | Omron |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 25MA 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 32186 pcs | Data sheet | A6TN-9104.pdf |
| Washable | Yes | Voltage Rating | 24VDC |
| Termination Style | PC Pin | Series | A6TN |
| Pitch | 0.100" (2.54mm), Full | Packaging | Tube |
| Other Names | A6TN-9104-ND A6TN9104 Z8511 |
Operating Temperature | -30°C ~ 85°C |
| Number of Positions | 9 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mechanical Life | - |
| Manufacturer Standard Lead Time | 22 Weeks | Length | 0.976" (24.79mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height Above Board | 0.228" (5.80mm) |
| Features | - | Electrical Life | 1,000 Cycles |
| Detailed Description | Dip Switch SPST 9 Position Through Hole Slide (Standard) Actuator 25mA 24VDC | Current Rating | 25mA |
| Contact Material | - | Contact Finish | - |
| Circuit | SPST | Body Material | - |
| Actuator Type | Slide (Standard) | Actuator Level | Raised |
