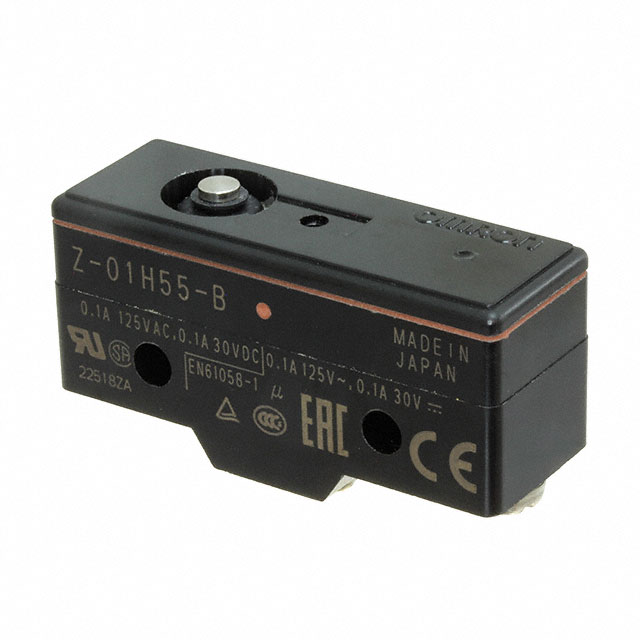

Z-01H55-B

Omron Automation & Safety

Image may be representation. See specifications for product details.

Product Overview

Part Number:	Z-01H55-B
Manufacturer/Brand:	Omron Automation & Safety
Product description	SWITCH SNAP ACT SPDT 100MA 125V
Datasheets:	Z-01H55-B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1003 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 1003 pcs

Reference Price (In US Dollars)

1 pcs: $34.834

10 pcs: $32.842

25 pcs: $30.852

50 pcs: $28.861

100 pcs: $27.866

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$34.834

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of Z-01H55-B

Part Number	Z-01H55-B	Manufacturer	Omron Automation & Safety
Description	SWITCH SNAP ACT SPDT 100MA 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1003 pcs	Data sheet	Z-01H55-B.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Screw Terminal	Switch Function	On-Mom
Series	Z	Release Force	80gf
Pretravel	0.087" (2.2mm)	Packaging	Bulk
Overtravel	0.005" (0.13mm)	Other Names	Z-01H55-B-ND Z01H55B Z10242
Operating Temperature	-15°C ~ 80°C	Operating Position	0.625" (15.9mm)
Operating Force	350gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	20,000,000 Cycles
Manufacturer Standard Lead Time	4 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP62	Features	-
Electrical Life	500,000 Cycles	Differential Travel	0.002" (0.05mm)
Current Rating	100mA (AC/DC)	Circuit	SPDT
Actuator Type	Round (Pin Plunger)
