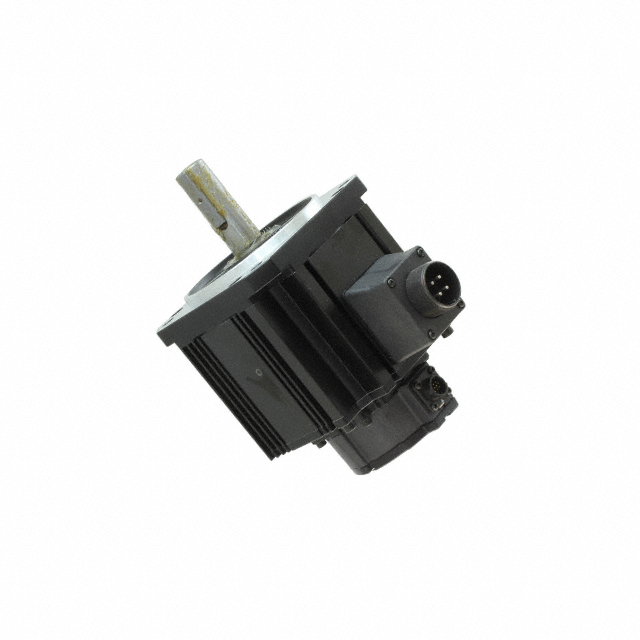

Omron Automation & Safety
| Part Number | R88M-K90010F-S2 | Manufacturer | Omron Automation & Safety |
|---|---|---|---|
| Description | SERVOMOTOR 1000 RPM 400VAC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 60 pcs | Data sheet | R88M-K90010F-S2.pdf |
| Weight | 15 lbs (6.8kg) | Voltage - Rated | 400VAC |
| Type | AC Motor | Torque - Rated (oz-in / mNm) | 1216.45 / 8590 |
| Torque - Max Momentary (oz-in / mNm) | 2733.11 / 19300 | Termination Style | Connector |
| Size / Dimension | Square - 5.118" x 5.118" (130.00mm x 130.00mm) | Series | Accurax G5 |
| RPM | 1000 RPM | Power - Rated | 900W |
| Other Names | R88M-K90010F-S2-ND R88MK90010FS2 Z10037 |
Operating Temperature | 0°C ~ 40°C |
| Mounting Hole Spacing | 5.709" (145.00mm) | Motor Type | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 17 Weeks |
| Length - Shaft and Bearing | 2.760" (70.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gear Reduction Ratio | - | Function | Servomotor |
| Features | Key | Encoder Type | Incremental |
| Diameter - Shaft | 0.890" (22.00mm) | Detailed Description | AC Motor Servomotor 1000 RPM 900W Incremental 400VAC |
| Approvals | CE, CSA, cULus, TUV, UL |
