Omron Automation & Safety

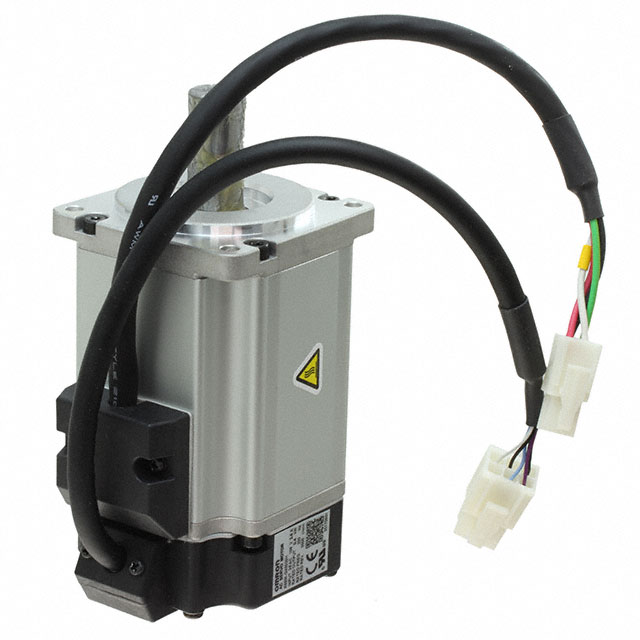

| Part Number | R88M-G40030T-S2 | Manufacturer | Omron Automation & Safety |
|---|---|---|---|
| Description | SERVOMOTOR 3000 RPM 200VAC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 82 pcs | Data sheet | 1.R88M-G40030T-S2.pdf2.R88M-G40030T-S2.pdf |
| Weight | 2.6 lbs (1.2kg) | Voltage - Rated | 200VAC |
| Type | AC Motor | Torque - Rated (oz-in / mNm) | 184.1 / 1300 |
| Torque - Max Momentary (oz-in / mNm) | 509.8 / 3600 | Termination Style | Cable with Connector |
| Size / Dimension | Square - 2.362" x 2.362" (60.00mm x 60.00mm) | Series | OMNUC G |
| RPM | 3000 RPM | Power - Rated | 400W |
| Other Names | R88M-G40030T-S2-ND R88MG40030TS2 Z10017 |
Operating Temperature | 0°C ~ 40°C |
| Mounting Hole Spacing | 2.756" (70.00mm) | Motor Type | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 14 Weeks |
| Length - Shaft and Bearing | 1.181" (30.00mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Gear Reduction Ratio | - | Function | Servomotor |
| Features | Key | Encoder Type | Absolute |
| Diameter - Shaft | 0.551" (14.00mm) | Detailed Description | AC Motor Servomotor 3000 RPM 400W Absolute 200VAC |
| Approvals | CSA, UL |
