DZ-10GV22-1B

Omron Automation & Safety

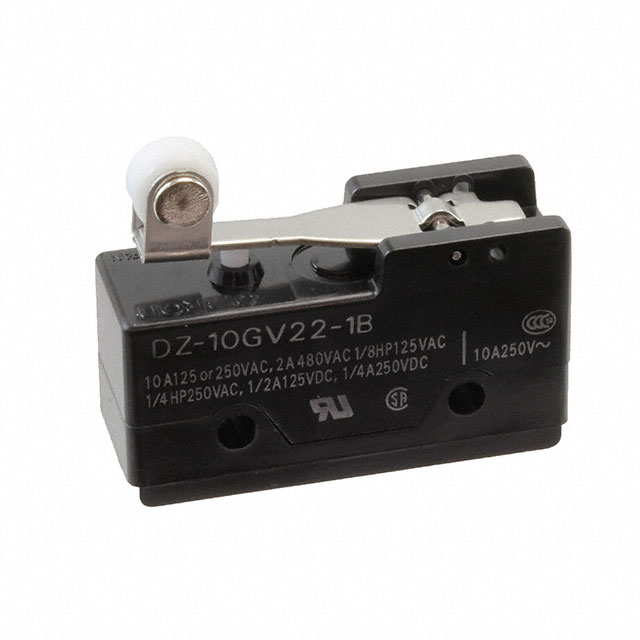

Image may be representation. See specifications for product details.

Product Overview

Part Number:	DZ-10GV22-1B
Manufacturer/Brand:	Omron Automation & Safety
Product description	SWITCH SNAP ACTION DPDT 10A 125V
Datasheets:	DZ-10GV22-1B.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	2451 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 2451 pcs

Reference Price (In US Dollars)

1 pcs: $14.081

10 pcs: $10.56

25 pcs: $9.68

50 pcs: $9.093

100 pcs: $8.506

250 pcs: $8.213

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$14.081

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of DZ-10GV22-1B

Part Number	DZ-10GV22-1B	Manufacturer	Omron Automation & Safety
Description	SWITCH SNAP ACTION DPDT 10A 125V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	2451 pcs	Data sheet	DZ-10GV22-1B.pdf
Voltage Rating - DC	30V	Voltage Rating - AC	125V
Termination Style	Screw Terminal	Switch Function	On-Mom
Series	DZ	Release Force	42gf
Pretravel	0.120" (3.0mm)	Packaging	Bulk
Overtravel	0.005" (0.13mm)	Other Names	DZ-10GV22-1B-ND DZ10GV221B Z11410
Operating Temperature	-25°C ~ 80°C	Operating Position	1.156" (29.4mm)
Operating Force	430gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	1,000,000 Cycles
Manufacturer Standard Lead Time	2 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP00	Features	-
Electrical Life	500,000 Cycles	Differential Travel	0.025" (0.6mm)
Current Rating	10A (AC/DC)	Circuit	DPDT
Actuator Type	Lever, Roller
