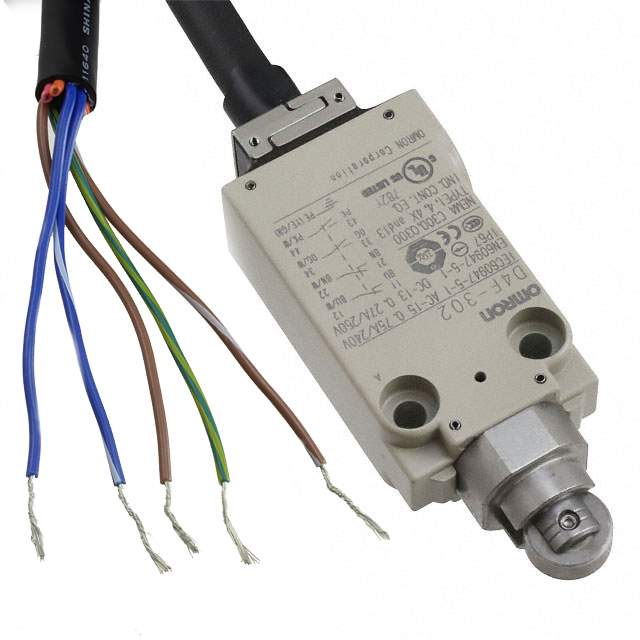

D4F-302-3D

Omron Automation & Safety

Image may be representation. See specifications for product details.

Product Overview

Part Number:	D4F-302-3D
Manufacturer/Brand:	Omron Automation & Safety
Product description	SWITCH SNAP ACTION 4PST 15A 120V
Datasheets:	D4F-302-3D.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	537 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 537 pcs

Reference Price (In US Dollars)

1 pcs: $59.171

10 pcs: $55.79

25 pcs: $52.409

50 pcs: $49.027

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$59.171

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of D4F-302-3D

Part Number	D4F-302-3D	Manufacturer	Omron Automation & Safety
Description	SWITCH SNAP ACTION 4PST 15A 120V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	537 pcs	Data sheet	D4F-302-3D.pdf
Voltage Rating - DC	125V	Voltage Rating - AC	120V
Termination Style	Cable Leads	Switch Function	On-Mom, Off-Mom
Series	D4F	Release Force	153gf
Pretravel	0.047" (1.2mm)	Packaging	Bulk
Overtravel	0.125" (3.2mm)	Other Names	11019-0031 D4F-302-3D-ND D4F3023D SW1494
Operating Temperature	-30°C ~ 70°C	Operating Position	1.156" (29.4mm)
Operating Force	1224gf	Mounting Type	Chassis Mount
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Mechanical Life	10,000,000 Cycles
Manufacturer Standard Lead Time	2 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Ingress Protection	IP67 - Dust Tight, Waterproof	Features	Cable Length 3m
Electrical Life	1,000,000 Cycles	Differential Travel	-
Current Rating	15A (AC), 550mA (DC)	Circuit	4PST-2NO/2NC
Actuator Type	Roller Plunger
