MV-302-55E

Ohmite

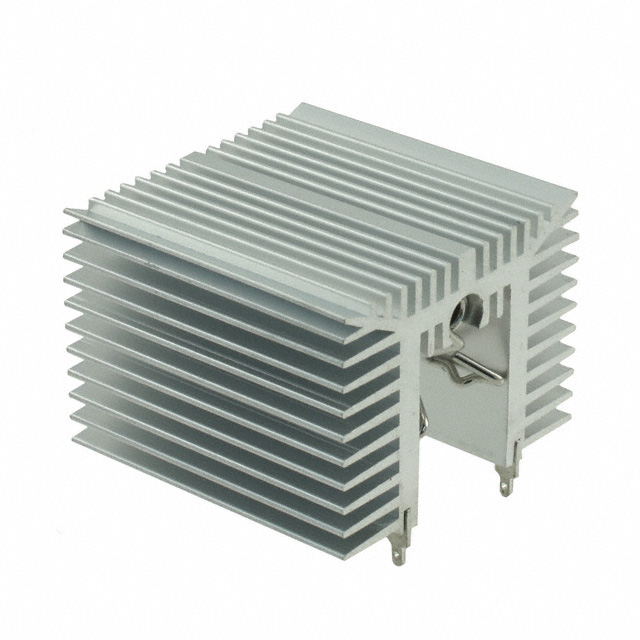

Image may be representation. See specifications for product details.

Product Overview

Part Number:	MV-302-55E
Manufacturer/Brand:	Ohmite
Product description	HEATSINK FOR TO-247 TO-264
Datasheets:	MV-302-55E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	10104 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 10104 pcs

Reference Price (In US Dollars)

1 pcs: $3.356

10 pcs: $3.264

25 pcs: $3.083

50 pcs: $2.901

100 pcs: $2.72

250 pcs: $2.539

500 pcs: $2.357

1000 pcs: $2.312

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$3.356

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of MV-302-55E

Part Number	MV-302-55E	Manufacturer	Ohmite
Description	HEATSINK FOR TO-247 TO-264	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	10104 pcs	Data sheet	MV-302-55E.pdf
Width	2.200" (55.88mm)	Type	Top Mount
Thermal Resistance @ Natural	-	Thermal Resistance @ Forced Air Flow	1.00°C/W @ 300 LFM
Shape	Rectangular, Fins	Series	M
Power Dissipation @ Temperature Rise	5.0W @ 20°C	Package Cooled	TO-247, TO-264
Other Names	MV30255E	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Finish	Degreased	Material	Aluminum
Manufacturer Standard Lead Time	17 Weeks	Length	2.170" (55.12mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Height Off Base (Height of Fin)	1.712" (43.48mm)
Diameter	-	Detailed Description	Heat Sink TO-247, TO-264 Aluminum 5.0W @ 20°C Top Mount
Attachment Method	Clip and PC Pin
