NorComp
| Part Number | 8P1P008210GRBR1 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN RCPT FMALE 8POS GOLD SOLDER | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4790 pcs | Data sheet | 8P1P008210GRBR1.pdf |
| Voltage Rating | 400V | Termination | Solder |
| Shielding | Unshielded | Shell Size, MIL | - |
| Shell Size - Insert | - | Shell Material | Polyacrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC) |
| Shell Finish | - | Series | QUIK-LOQ™ 8P1P |
| Packaging | Tray | Other Names | NOR1705 |
| Orientation | Keyed | Operating Temperature | -20°C ~ 120°C |
| Number of Positions | 8 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insert Material | Polyphenylene Sulfide (PPS) |
| Ingress Protection | IP50 - Dust Protected | Features | - |

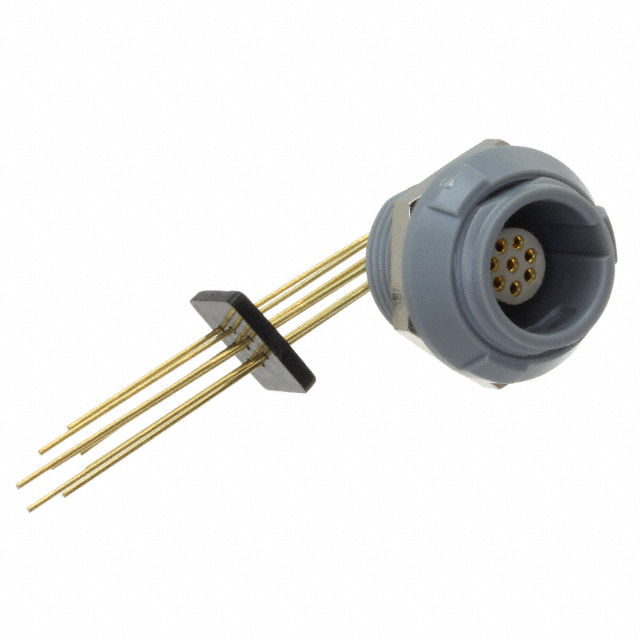

| Fastening Type | Push-Pull | Detailed Description | 8 Position Circular Connector Receptacle, Female Sockets Solder Gold |
| Current Rating | 5A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | 7.00µin (0.178µm) | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Female Sockets | Color | Gray |
| Cable Opening | - | Backshell Material, Plating | - |
| Applications | - |
