NorComp
| Part Number | 822B003-273L501 | Manufacturer | NorComp |
|---|---|---|---|

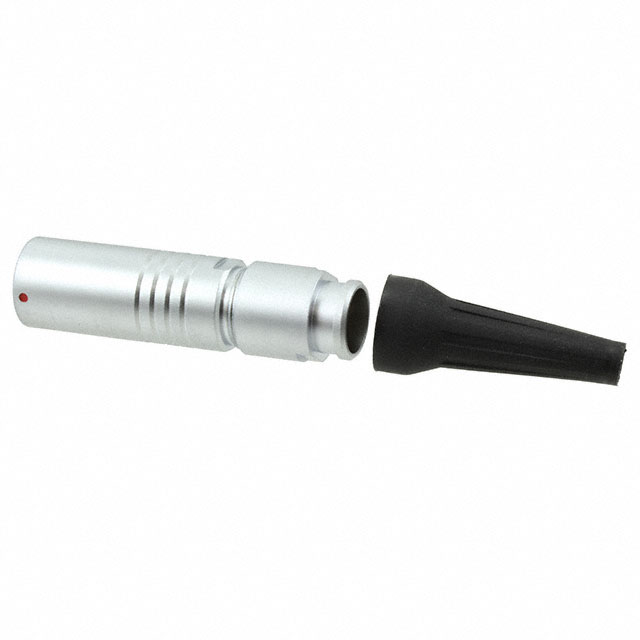

| Description | CONN RCPT FMALE 3POS SOLDER CUP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2287 pcs | Data sheet | 822B003-273L501.pdf |
| Voltage Rating | 800V | Termination | Solder Cup |
| Shielding | Shielded | Shell Size, MIL | - |
| Shell Size - Insert | - | Shell Material | Brass |
| Shell Finish | Nickel | Series | QUIK-LOQ™ 822B |
| Packaging | Tray | Other Names | NOR1558 |
| Orientation | Keyed | Operating Temperature | -40°C ~ 200°C |
| Number of Positions | 3 | Mounting Type | Free Hanging (In-Line) |
| Mounting Feature | - | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insert Material | Polyphenylene Sulfide (PPS) |
| Ingress Protection | IP50 - Dust Protected | Features | Backshell, Strain Relief |
| Fastening Type | Push-Pull | Detailed Description | 3 Position Circular Connector Receptacle, Female Sockets Solder Cup Gold |
| Current Rating | 17A | Contact Material | Copper Alloy |
| Contact Finish Thickness - Mating | 7.00µin (0.178µm) | Contact Finish - Mating | Gold |
| Connector Type | Receptacle, Female Sockets | Color | Black, Silver |
| Cable Opening | 0.169" ~ 0.205" (4.30mm ~ 5.20mm) | Backshell Material, Plating | Brass, Chrome |
| Applications | - |
