NorComp
| Part Number | 773-E25-113R141 | Manufacturer | NorComp |
|---|---|---|---|

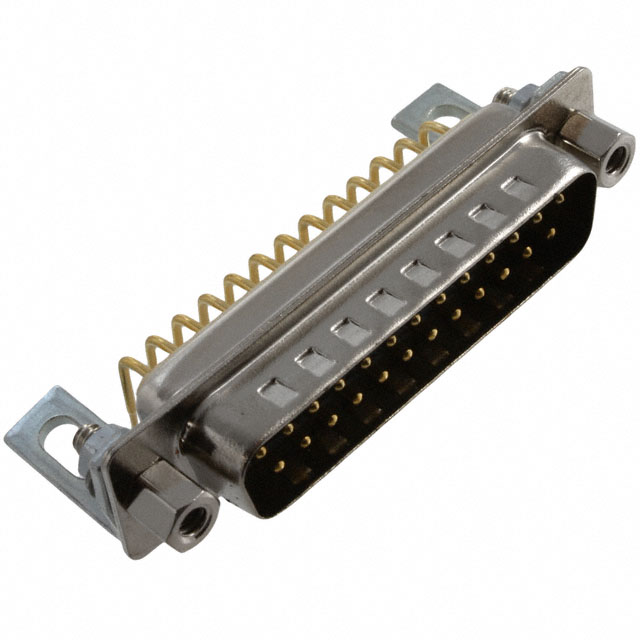

| Description | CONN D-SUB PLUG 25POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 7727 pcs | Data sheet | 1.773-E25-113R141.pdf2.773-E25-113R141.pdf |
| Wire Gauge | - | Voltage Rating | - |
| Termination | Solder | Shell Size, Connector Layout | 3 (DB, B) |
| Shell Material, Finish | Steel, Nickel Plated | Series | Seal-D 773-E |
| Packaging | Tray | Other Names | 773E25113R141 NOR1072 |
| Operating Temperature | -50°C ~ 100°C | Number of Rows | 2 |
| Number of Positions | 25 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | IP67 - Dust Tight, Waterproof | Housing Material | Polyamide (PA6T), Nylon 6T |
| Flange Feature | Mating Side, Female Screwlock (4-40) | Features | Grounding Indents, Mounting Brackets |
| Detailed Description | 25 Position D-Sub Plug, Male Pins Connector | Current Rating | 5A |
| Contact Type | Signal | Contact Material | Brass |
| Contact Form | - | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector Type | Plug, Male Pins |
| Connector Style | D-Sub | Color | White |
| Backset Spacing | 0.283" (7.20mm) |
