NorComp

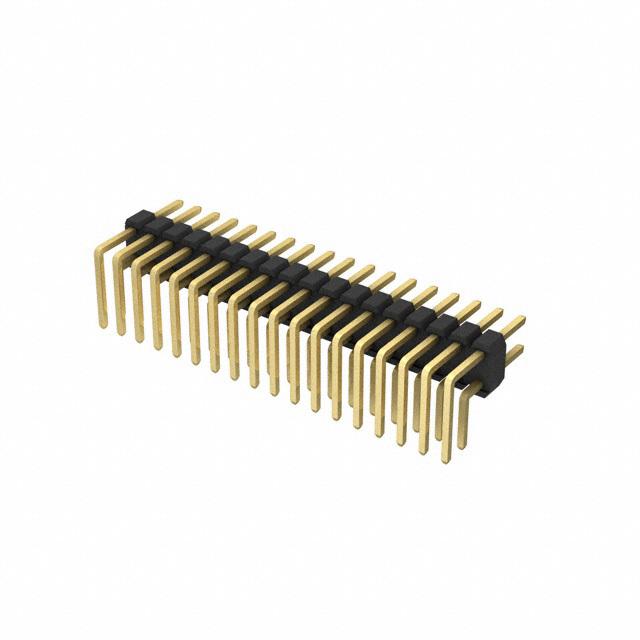

| Part Number | 27643602RP2 | Manufacturer | NorComp |
|---|---|---|---|
| Description | CONN HDR 2MM MALE 2ROW R/A 36POS | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15741 pcs | Data sheet | 27643602RP2.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Board or Cable | Shrouding | Unshrouded |
| Series | 2764 | Row Spacing - Mating | 0.079" (2.00mm) |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
| Overall Contact Length | - | Other Names | 2764R-18 |
| Operating Temperature | -40°C ~ 105°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 36 |
| Mounting Type | Through Hole, Right Angle | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA6T), Nylon 6T | Insulation Height | 0.158" (4.01mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | - | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Through Hole, Right Angle 36 position 0.079" (2.00mm) | Current Rating | 1A |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.118" (3.00mm) |
| Contact Length - Mating | 0.150" (3.81mm) | Contact Finish Thickness - Post | Flash |
| Contact Finish Thickness - Mating | Flash | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
