NorComp
| Part Number | 172-E25-113R911 | Manufacturer | NorComp |
|---|---|---|---|

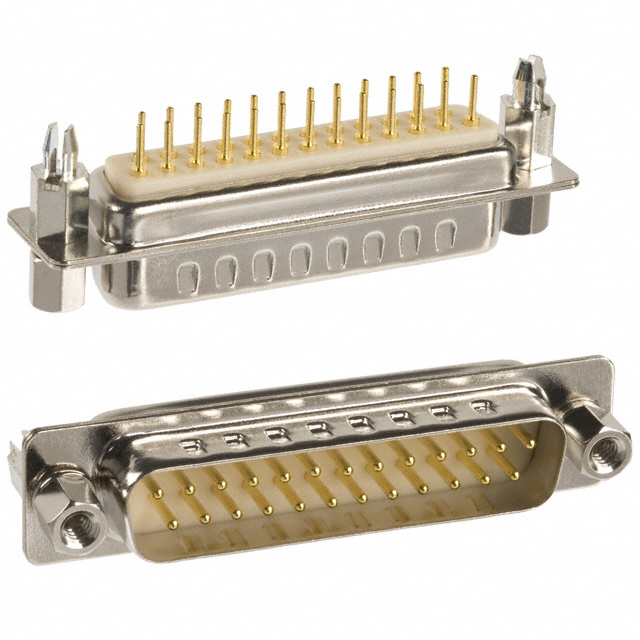

| Description | CONN D-SUB PLUG 25P PNL MNT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 14425 pcs | Data sheet | 1.172-E25-113R911.pdf2.172-E25-113R911.pdf |
| Wire Gauge | - | Voltage Rating | - |
| Termination | Solder | Shell Size, Connector Layout | 3 (DB, B) |
| Shell Material, Finish | Steel, Nickel Plated | Series | 172-E, M Series |
| Packaging | Tray | Other Names | 172E25113R911 2925MEA |
| Operating Temperature | -50°C ~ 100°C | Number of Rows | 2 |
| Number of Positions | 25 | Mounting Type | Panel Mount, Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 14 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Ingress Protection | - | Housing Material | Polyamide (PA6T), Nylon 6T |
| Flange Feature | Board Side (4-40); Mating Side, Female Screwlock (4-40) | Features | Board Lock, Grounding Indents |
| Detailed Description | 25 Position D-Sub Plug, Male Pins Connector | Current Rating | 5A |
| Contact Type | Signal | Contact Material | Brass |
| Contact Form | Machined | Contact Finish Thickness | Flash |
| Contact Finish | Gold | Connector Type | Plug, Male Pins |
| Connector Style | D-Sub | Color | White |
| Backset Spacing | - |
