HomeProductsCapacitorsAluminum Electrolytic CapacitorsSMG100VB2R2M5X11LL

SMG100VB2R2M5X11LL

Nippon Chemi-ConNippon Chemi-Con

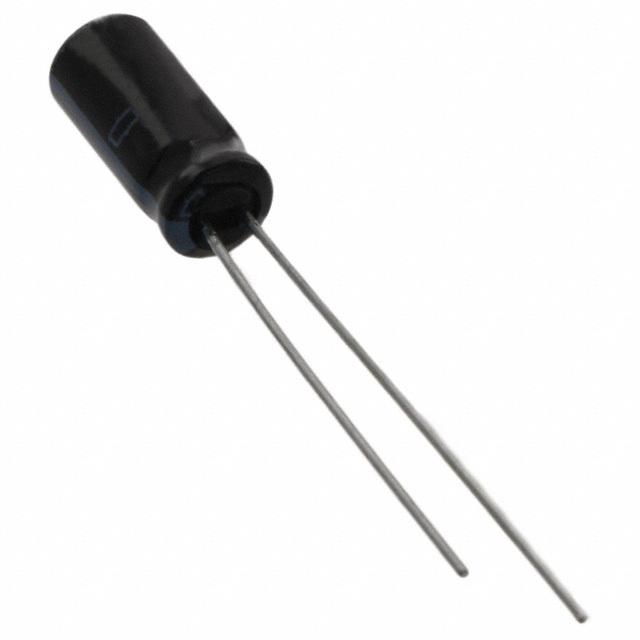

SMG100VB2R2M5X11LL Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: SMG100VB2R2M5X11LL
Manufacturer/Brand: Nippon Chemi-Con
Product description CAP ALUM 2.2UF 20% 100V RADIAL
Datasheets:
RoHs Status Contains lead / RoHS non-compliant
Stock Condition 4093 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 4093 pcs
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of SMG100VB2R2M5X11LL

Part Number SMG100VB2R2M5X11LL Manufacturer Nippon Chemi-Con
Description CAP ALUM 2.2UF 20% 100V RADIAL Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Quantity Available 4093 pcs Data sheet
Voltage - Rated 100V Tolerance ±20%
Surface Mount Land Size - Size / Dimension 0.197" Dia (5.00mm)
Series SMG Ripple Current @ Low Frequency 30mA @ 120Hz
Ripple Current @ High Frequency 75mA @ 100kHz Ratings -
Polarization Polar Packaging Bulk
Package / Case Radial, Can Operating Temperature -40°C ~ 85°C
Mounting Type Through Hole Lifetime @ Temp. 2000 Hrs @ 85°C
Lead Spacing 0.079" (2.00mm) Lead Free Status / RoHS Status Contains lead / RoHS non-compliant
Height - Seated (Max) 0.433" (11.00mm) ESR (Equivalent Series Resistance) 106 mOhm @ 120Hz
Detailed Description 2.2µF 100V Aluminum Electrolytic Capacitors Radial, Can 106 mOhm @ 120Hz 2000 Hrs @ 85°C Capacitance 2.2µF
Applications General Purpose
