ESMH101VSN392MR45T

Nippon Chemi-Con

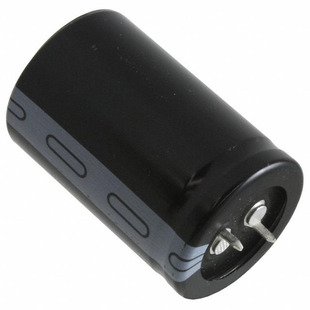

Image may be representation. See specifications for product details.

Product Overview

Part Number:	ESMH101VSN392MR45T
Manufacturer/Brand:	Nippon Chemi-Con
Product description	CAP ALUM 3900UF 20% 100V SNAP
Datasheets:	ESMH101VSN392MR45T.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	20292 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 20292 pcs

Reference Price (In US Dollars)

1 pcs: $1.821

10 pcs: $1.639

100 pcs: $1.238

500 pcs: $1.02

1000 pcs: $0.947

2500 pcs: $0.943

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.821

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of ESMH101VSN392MR45T

Part Number	ESMH101VSN392MR45T	Manufacturer	Nippon Chemi-Con
Description	CAP ALUM 3900UF 20% 100V SNAP	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	20292 pcs	Data sheet	ESMH101VSN392MR45T.pdf
Voltage - Rated	100V	Tolerance	±20%
Surface Mount Land Size	-	Size / Dimension	1.181" Dia (30.00mm)
Series	SMH	Ripple Current @ Low Frequency	4.54A @ 120Hz
Ripple Current @ High Frequency	5.448A @ 100kHz	Ratings	-
Polarization	Polar	Packaging	Bulk
Package / Case	Radial, Can - Snap-In	Other Names	565-2714 ESMH101VSN392MR45N
Operating Temperature	-40°C ~ 85°C	Mounting Type	Through Hole
Manufacturer Standard Lead Time	16 Weeks	Lifetime @ Temp.	2000 Hrs @ 85°C
Lead Spacing	0.394" (10.00mm)	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Height - Seated (Max)	1.772" (45.00mm)	ESR (Equivalent Series Resistance)	64 mOhm @ 120Hz
Detailed Description	3900µF 100V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 64 mOhm @ 120Hz 2000 Hrs @ 85°C	Capacitance	3900µF
Applications	General Purpose
