ELXV630ELL561MK40S

Nippon Chemi-ConNippon Chemi-Con

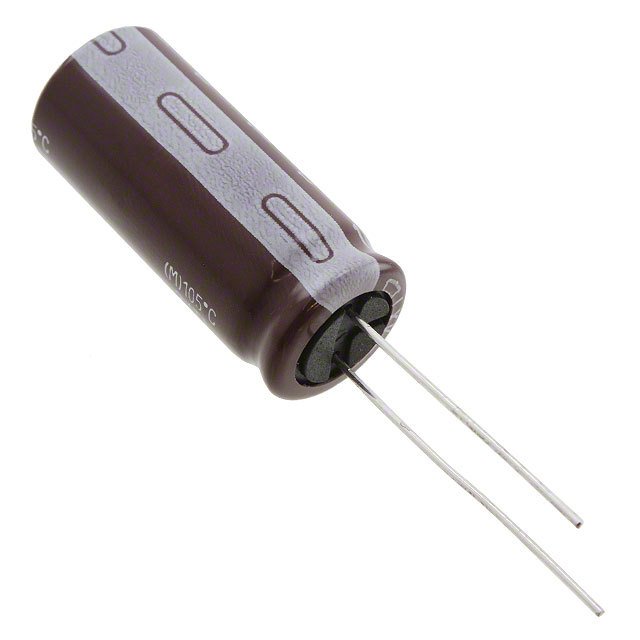

ELXV630ELL561MK40S Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: ELXV630ELL561MK40S
Manufacturer/Brand: Nippon Chemi-Con
Product description CAP ALUM 560UF 20% 63V RADIAL
Datasheets: ELXV630ELL561MK40S.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 205402 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 205402 pcs
Reference Price (In US Dollars)
500 pcs
$0.191
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$0.191

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of ELXV630ELL561MK40S

Part Number ELXV630ELL561MK40S Manufacturer Nippon Chemi-Con
Description CAP ALUM 560UF 20% 63V RADIAL Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 205402 pcs Data sheet ELXV630ELL561MK40S.pdf
Voltage - Rated 63V Tolerance ±20%
Surface Mount Land Size - Size / Dimension 0.492" Dia (12.50mm)
Series LXV Ripple Current @ Low Frequency 535.5mA @ 120Hz
Ripple Current @ High Frequency 1.53A @ 100kHz Ratings AEC-Q200
Polarization Polar Packaging Bulk
Package / Case Radial, Can Operating Temperature -55°C ~ 105°C
Mounting Type Through Hole Moisture Sensitivity Level (MSL) 1 (Unlimited)
Manufacturer Standard Lead Time 16 Weeks Lifetime @ Temp. 5000 Hrs @ 105°C
Lead Spacing 0.197" (5.00mm) Lead Free Status / RoHS Status Lead free / RoHS Compliant
Impedance 51 mOhms Height - Seated (Max) 1.634" (41.50mm)
ESR (Equivalent Series Resistance) - Detailed Description 560µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Capacitance 560µF Applications Automotive
