EKZN101ELL561MM25S

Nippon Chemi-Con

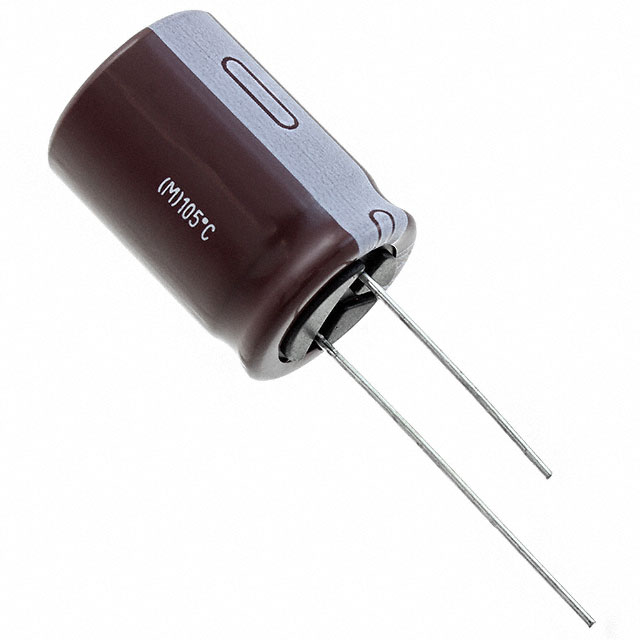

Image may be representation. See specifications for product details.

Product Overview

Part Number:	EKZN101ELL561MM25S
Manufacturer/Brand:	Nippon Chemi-Con
Product description	CAP ALUM 560UF 20% 100V RADIAL
Datasheets:	EKZN101ELL561MM25S.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	37300 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 37300 pcs

Reference Price (In US Dollars)

1 pcs: $0.986

10 pcs: $0.798

100 pcs: $0.609

500 pcs: $0.464

1000 pcs: $0.406

2500 pcs: $0.392

5000 pcs: $0.377

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.986

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of EKZN101ELL561MM25S

Part Number	EKZN101ELL561MM25S	Manufacturer	Nippon Chemi-Con
Description	CAP ALUM 560UF 20% 100V RADIAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	37300 pcs	Data sheet	EKZN101ELL561MM25S.pdf
Voltage - Rated	100V	Tolerance	±20%
Surface Mount Land Size	-	Size / Dimension	0.709" Dia (18.00mm)
Series	KZN	Ripple Current @ Low Frequency	1.25A @ 120Hz
Ripple Current @ High Frequency	2.5A @ 100kHz	Ratings	-
Polarization	Polar	Packaging	Bulk
Package / Case	Radial, Can	Other Names	565-4149
Operating Temperature	-40°C ~ 105°C	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Manufacturer Standard Lead Time	16 Weeks
Lifetime @ Temp.	10000 Hrs @ 105°C	Lead Spacing	0.295" (7.50mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Impedance	27 mOhms
Height - Seated (Max)	1.043" (26.50mm)	ESR (Equivalent Series Resistance)	-
Detailed Description	560µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C	Capacitance	560µF
Applications	General Purpose
