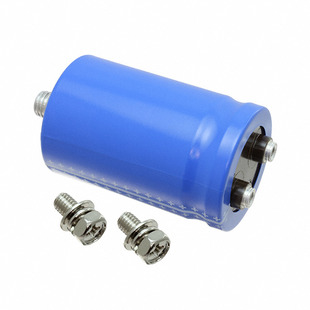

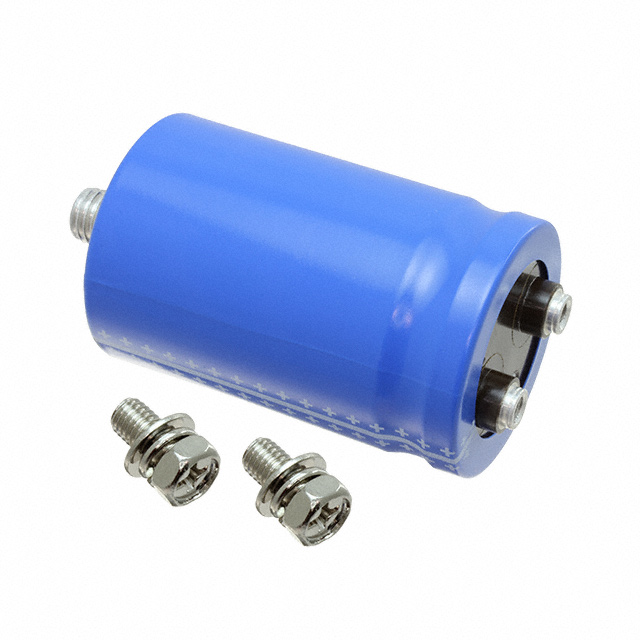

Nippon Chemi-Con
| Part Number | E36D250HLS104MC79M | Manufacturer | Nippon Chemi-Con |
|---|---|---|---|
| Description | CAP ALUM 100000UF 20% 25V SCREW | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5562 pcs | Data sheet | E36D250HLS104MC79M.pdf |
| Voltage - Rated | 25V | Tolerance | ±20% |
| Surface Mount Land Size | - | Size / Dimension | 2.000" Dia (50.80mm) |
| Series | U36D | Ripple Current @ Low Frequency | 10.84A @ 120Hz |
| Ripple Current @ High Frequency | 15.176A @ 3kHz | Ratings | - |
| Polarization | Polar | Packaging | Bulk |
| Package / Case | Radial, Can - Screw Terminals | Other Names | 565-4950 E36D250HLS104MC79M-ND |
| Operating Temperature | -40°C ~ 85°C | Mounting Type | Chassis Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Lifetime @ Temp. | 2000 Hrs @ 85°C | Lead Spacing | 0.875" (22.22mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 3.125" (79.38mm) |
| ESR (Equivalent Series Resistance) | 9.2 mOhm @ 120Hz | Detailed Description | 100000µF 25V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 9.2 mOhm @ 120Hz 2000 Hrs @ 85°C |
| Capacitance | 100000µF | Applications | General Purpose |
