Nichicon

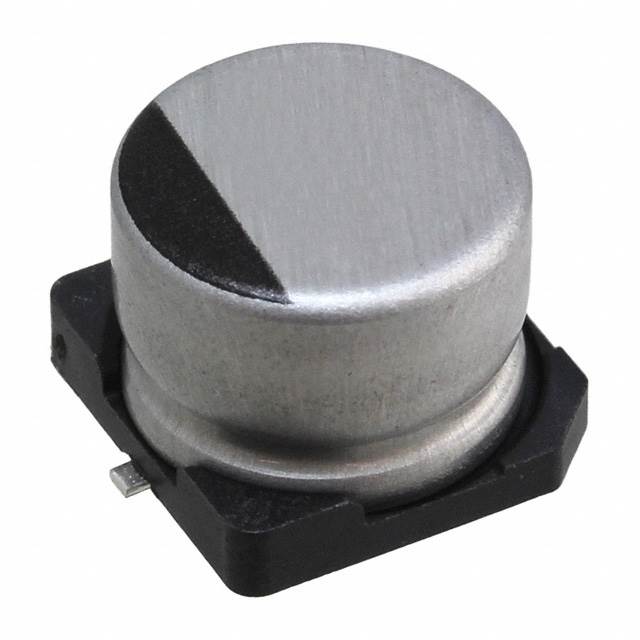

| Part Number | UWF1E680MCL1GS | Manufacturer | Nichicon |
|---|---|---|---|
| Description | CAP ALUM 68UF 20% 25V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 543832 pcs | Data sheet | 1.UWF1E680MCL1GS.pdf2.UWF1E680MCL1GS.pdf3.UWF1E680MCL1GS.pdf |
| Voltage - Rated | 25V | Tolerance | ±20% |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) | Size / Dimension | 0.315" Dia (8.00mm) |
| Series | UWF | Ripple Current @ Low Frequency | 75mA @ 120Hz |
| Ripple Current @ High Frequency | 150mA @ 100kHz | Ratings | - |
| Polarization | - | Packaging | Tape & Reel (TR) |
| Package / Case | Radial, Can - SMD | Other Names | 493-9722-2 UWF1E680MCL1GS-ND |
| Operating Temperature | -55°C ~ 105°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 20 Weeks |
| Lifetime @ Temp. | 1000 Hrs @ 105°C | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Impedance | 800 mOhms |
| Height - Seated (Max) | 0.256" (6.50mm) | ESR (Equivalent Series Resistance) | - |
| Detailed Description | 68µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C | Capacitance | 68µF |
| Applications | General Purpose |
