Nichicon

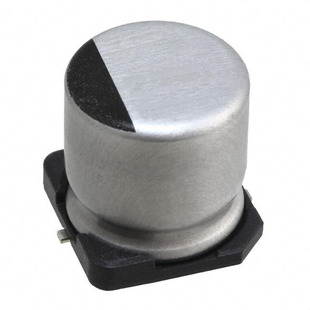

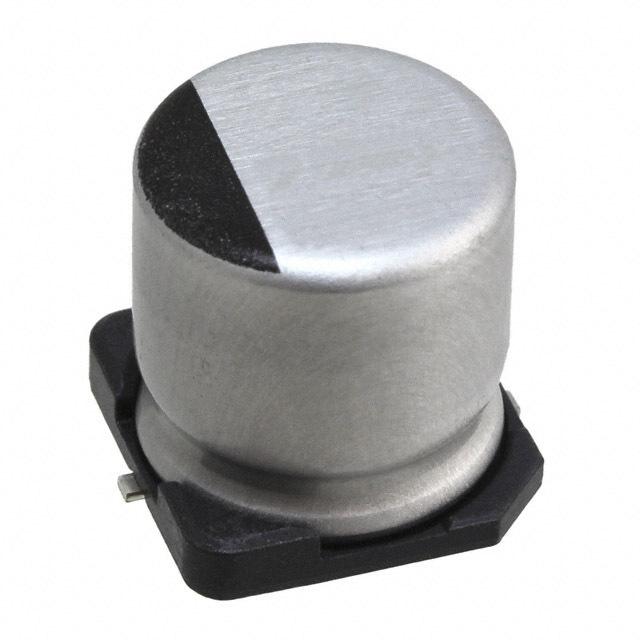

| Part Number | UWD1V331MCL1GS | Manufacturer | Nichicon |
|---|---|---|---|
| Description | CAP ALUM 330UF 20% 35V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 303422 pcs | Data sheet | 1.UWD1V331MCL1GS.pdf2.UWD1V331MCL1GS.pdf3.UWD1V331MCL1GS.pdf |
| Voltage - Rated | 35V | Tolerance | ±20% |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) | Size / Dimension | 0.394" Dia (10.00mm) |
| Series | UWD | Ripple Current @ Low Frequency | 335mA @ 120Hz |
| Ripple Current @ High Frequency | 670mA @ 100kHz | Ratings | - |
| Polarization | - | Packaging | Tape & Reel (TR) |
| Package / Case | Radial, Can - SMD | Other Names | 493-9692-2 UWD1V331MCL1GS-ND |
| Operating Temperature | -55°C ~ 105°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 28 Weeks |
| Lifetime @ Temp. | 5000 Hrs @ 105°C | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Impedance | 90 mOhms |
| Height - Seated (Max) | 0.394" (10.00mm) | ESR (Equivalent Series Resistance) | - |
| Detailed Description | 330µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C | Capacitance | 330µF |
| Applications | General Purpose |
