Nichicon

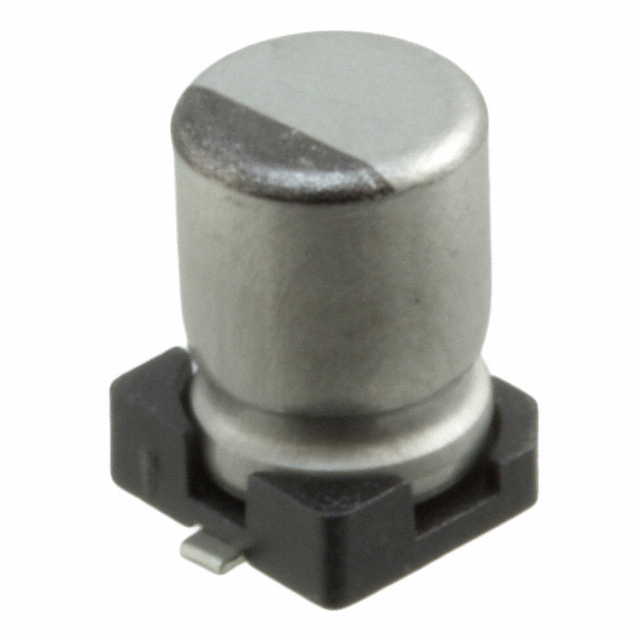

| Part Number | UWD1H2R2MCL1GS | Manufacturer | Nichicon |
|---|---|---|---|
| Description | CAP ALUM 2.2UF 20% 50V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1141054 pcs | Data sheet | 1.UWD1H2R2MCL1GS.pdf2.UWD1H2R2MCL1GS.pdf3.UWD1H2R2MCL1GS.pdf |
| Voltage - Rated | 50V | Tolerance | ±20% |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) | Size / Dimension | 0.157" Dia (4.00mm) |
| Series | UWD | Ripple Current @ Low Frequency | 15mA @ 120Hz |
| Ripple Current @ High Frequency | 30mA @ 100kHz | Ratings | - |
| Polarization | - | Packaging | Tape & Reel (TR) |
| Package / Case | Radial, Can - SMD | Other Names | 493-6296-2 UWD1H2R2MCL1GS-ND |
| Operating Temperature | -55°C ~ 105°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 23 Weeks |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Impedance | 5 Ohms |
| Height - Seated (Max) | 0.240" (6.10mm) | ESR (Equivalent Series Resistance) | - |
| Detailed Description | 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C | Capacitance | 2.2µF |
| Applications | General Purpose |
