Nichicon
| Part Number | UPA1E561MPD | Manufacturer | Nichicon |
|---|---|---|---|

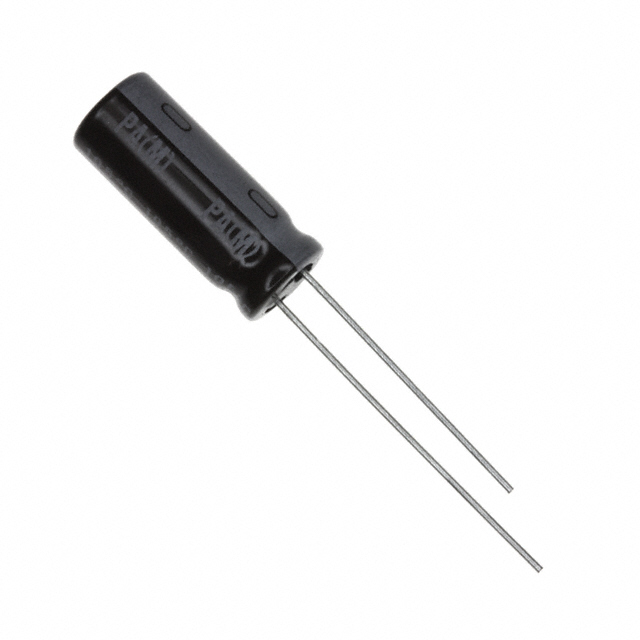

| Description | CAP ALUM 560UF 20% 25V RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 139218 pcs | Data sheet | 1.UPA1E561MPD.pdf2.UPA1E561MPD.pdf |
| Voltage - Rated | 25V | Tolerance | ±20% |
| Surface Mount Land Size | - | Size / Dimension | 0.315" Dia (8.00mm) |
| Series | UPA | Ripple Current @ Low Frequency | 915mA @ 120Hz |
| Ripple Current @ High Frequency | 1.22A @ 100kHz | Ratings | - |
| Polarization | Polar | Packaging | Bulk |
| Package / Case | Radial, Can | Other Names | 493-16988 Q4225881 UPA1E561MPD-ND |
| Operating Temperature | -55°C ~ 105°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 20 Weeks |
| Lifetime @ Temp. | 3000 Hrs @ 105°C | Lead Spacing | 0.138" (3.50mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Impedance | 44 mOhms |
| Height - Seated (Max) | 0.787" (20.00mm) | ESR (Equivalent Series Resistance) | - |
| Detailed Description | 560µF 25V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C | Capacitance | 560µF |
| Applications | General Purpose |
