Nichicon

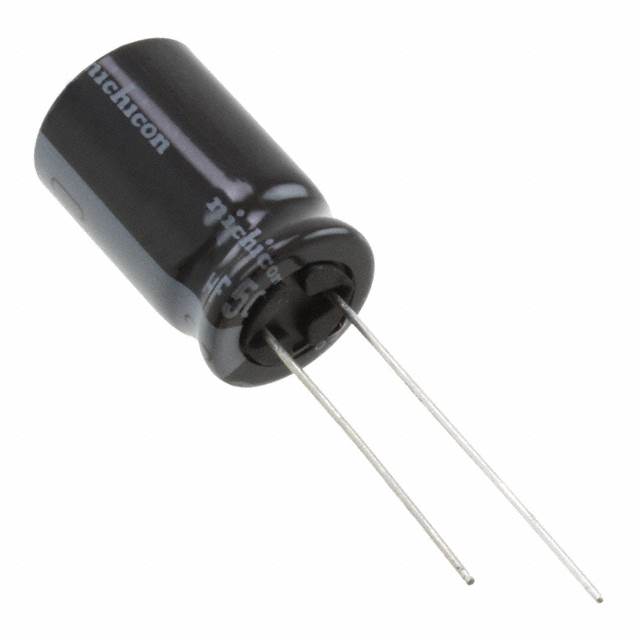

| Part Number | UHW1K271MHD6TO | Manufacturer | Nichicon |
|---|---|---|---|
| Description | CAP ALUM 270UF 20% 80V RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 163074 pcs | Data sheet | UHW1K271MHD6TO.pdf |
| Voltage - Rated | 80V | Tolerance | ±20% |
| Surface Mount Land Size | - | Size / Dimension | 0.492" Dia (12.50mm) |
| Series | UHW | Ripple Current @ Low Frequency | 875mA @ 120Hz |
| Ripple Current @ High Frequency | 1.75A @ 100kHz | Ratings | - |
| Polarization | Polar | Packaging | Tape & Box (TB) |
| Package / Case | Radial, Can | Other Names | 493-14610-2 493-14610-2-ND 493-14610-3 |
| Operating Temperature | -40°C ~ 105°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 25 Weeks |
| Lifetime @ Temp. | 10000 Hrs @ 105°C | Lead Spacing | 0.197" (5.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Impedance | 65 mOhms |
| Height - Seated (Max) | 0.866" (22.00mm) | ESR (Equivalent Series Resistance) | - |
| Detailed Description | 270µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C | Capacitance | 270µF |
| Applications | General Purpose |
