Nichicon
| Part Number | UCZ2A181MNQ1MS | Manufacturer | Nichicon |
|---|---|---|---|

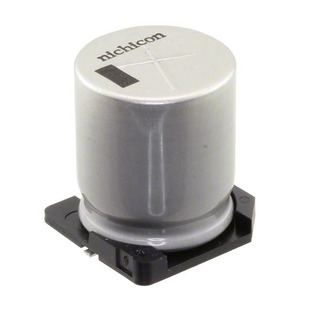

| Description | CAP ALUM 180UF 20% 100V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 51257 pcs | Data sheet | 1.UCZ2A181MNQ1MS.pdf2.UCZ2A181MNQ1MS.pdf3.UCZ2A181MNQ1MS.pdf |
| Voltage - Rated | 100V | Tolerance | ±20% |
| Surface Mount Land Size | 0.752" L x 0.752" W (19.10mm x 19.10mm) | Size / Dimension | 0.709" Dia (18.00mm) |
| Series | UCZ | Ripple Current @ Low Frequency | 550mA @ 120Hz |
| Ripple Current @ High Frequency | 1.1A @ 100kHz | Ratings | - |
| Polarization | Polar | Packaging | Cut Tape (CT) |
| Package / Case | Radial, Can - SMD | Other Names | 493-13971-1 |
| Operating Temperature | -40°C ~ 125°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 18 Weeks |
| Lifetime @ Temp. | 3500 Hrs @ 125°C | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.689" (17.50mm) |
| ESR (Equivalent Series Resistance) | 170 mOhm @ 100kHz | Detailed Description | 180µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 170 mOhm @ 100kHz 3500 Hrs @ 125°C |
| Capacitance | 180µF | Applications | General Purpose |
