Nichicon

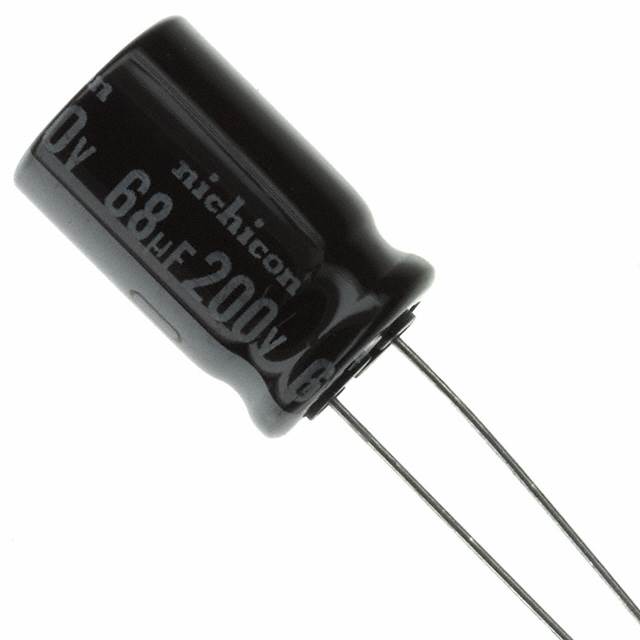

| Part Number | UCY2D680MHD3 | Manufacturer | Nichicon |
|---|---|---|---|
| Description | CAP ALUM 68UF 20% 200V RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 91448 pcs | Data sheet | 1.UCY2D680MHD3.pdf2.UCY2D680MHD3.pdf |
| Voltage - Rated | 200V | Tolerance | ±20% |
| Surface Mount Land Size | - | Size / Dimension | 0.492" Dia (12.50mm) |
| Series | UCY | Ripple Current @ Low Frequency | 650mA @ 120Hz |
| Ripple Current @ High Frequency | 1.3A @ 100kHz | Ratings | - |
| Polarization | Polar | Packaging | Bulk |
| Package / Case | Radial, Can | Other Names | 493-16718 Q4252013A UCY2D680MHD3-ND UCY2D680MHD6 |
| Operating Temperature | -40°C ~ 105°C | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 27 Weeks |
| Lifetime @ Temp. | 12000 Hrs @ 105°C | Lead Spacing | 0.197" (5.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.787" (20.00mm) |
| ESR (Equivalent Series Resistance) | - | Detailed Description | 68µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C |
| Capacitance | 68µF | Applications | General Purpose |
