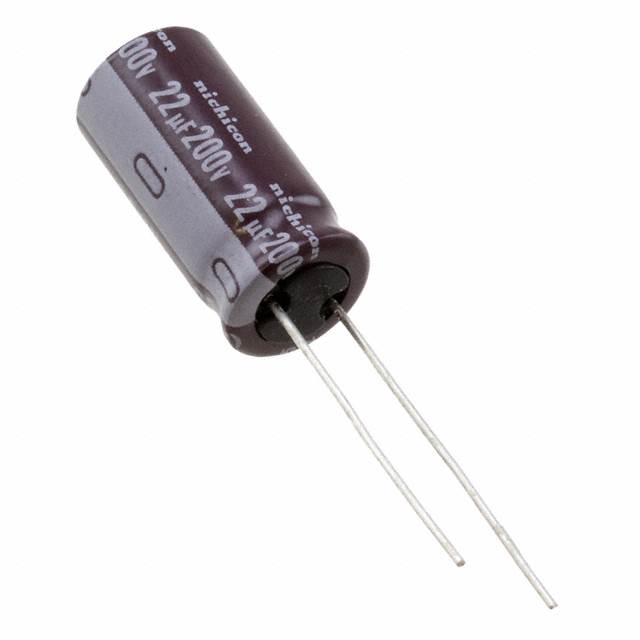

Part Number | UCS2D220MPD1TD | Manufacturer | Nichicon |
---|---|---|---|
Description | CAP ALUM 22UF 20% 200V RADIAL | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
Quantity Available | 390997 pcs | Data sheet | 1.UCS2D220MPD1TD.pdf2.UCS2D220MPD1TD.pdf |
Voltage - Rated | 200V | Tolerance | ±20% |
Surface Mount Land Size | - | Size / Dimension | 0.394" Dia (10.00mm) |
Series | UCS | Ripple Current @ Low Frequency | 250mA @ 120Hz |
Ripple Current @ High Frequency | 500mA @ 100kHz | Ratings | - |
Polarization | Polar | Packaging | Tape & Box (TB) |
Package / Case | Radial, Can | Other Names | 493-7382-2 493-7382-2-ND 493-7382-3 |
Operating Temperature | -40°C ~ 105°C | Mounting Type | Through Hole |
Moisture Sensitivity Level (MSL) | Not Applicable | Manufacturer Standard Lead Time | 26 Weeks |
Lifetime @ Temp. | 8000 Hrs @ 105°C | Lead Spacing | 0.197" (5.00mm) |
Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.866" (22.00mm) |
ESR (Equivalent Series Resistance) | - | Detailed Description | 22µF 200V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C |
Capacitance | 22µF | Applications | General Purpose |
