Nichicon
| Part Number | RSB0E561MCN1GS | Manufacturer | Nichicon |
|---|---|---|---|

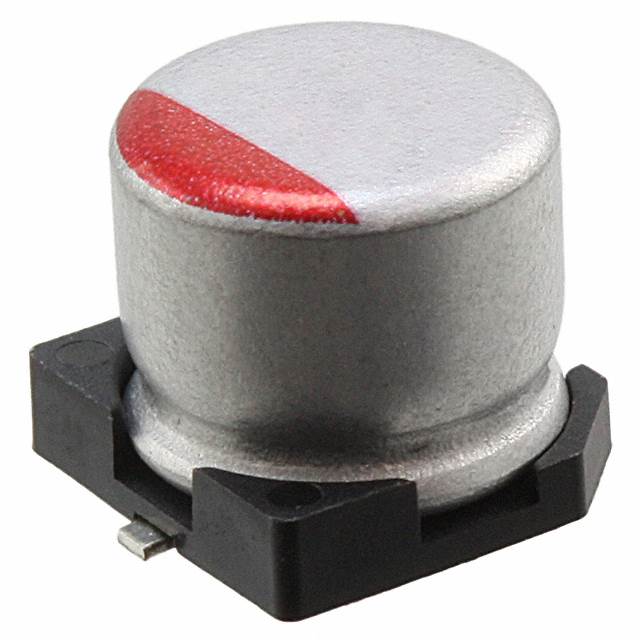

| Description | CAP ALUM POLY 560UF 20% 2.5V SMD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 401144 pcs | Data sheet | 1.RSB0E561MCN1GS.pdf2.RSB0E561MCN1GS.pdf3.RSB0E561MCN1GS.pdf |
| Voltage - Rated | 2.5V | Type | Polymer |
| Tolerance | ±20% | Surface Mount Land Size | 0.256" L x 0.256" W (6.50mm x 6.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) | Series | FPCAP, RSB |
| Ripple Current @ Low Frequency | 380mA @ 120Hz | Ripple Current @ High Frequency | 3.8A @ 100kHz |
| Ratings | - | Packaging | Tape & Reel (TR) |
| Package / Case | Radial, Can - SMD | Other Names | 493-14283-2 RSB0E561MCN1GS-ND |
| Operating Temperature | -55°C ~ 105°C | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 18 Weeks |
| Lifetime @ Temp. | 2000 Hrs @ 105°C | Lead Spacing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Height - Seated (Max) | 0.236" (6.00mm) |
| ESR (Equivalent Series Resistance) | 10 mOhm | Detailed Description | 560µF 2.5V Aluminum Polymer Capacitor Radial, Can - SMD 10 mOhm 2000 Hrs @ 105°C |
| Capacitance | 560µF | Applications | General Purpose |
