Nexperia

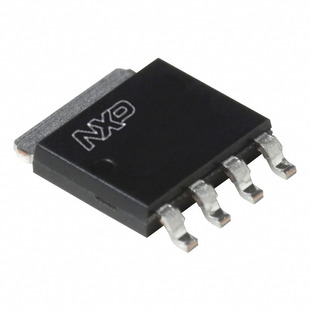

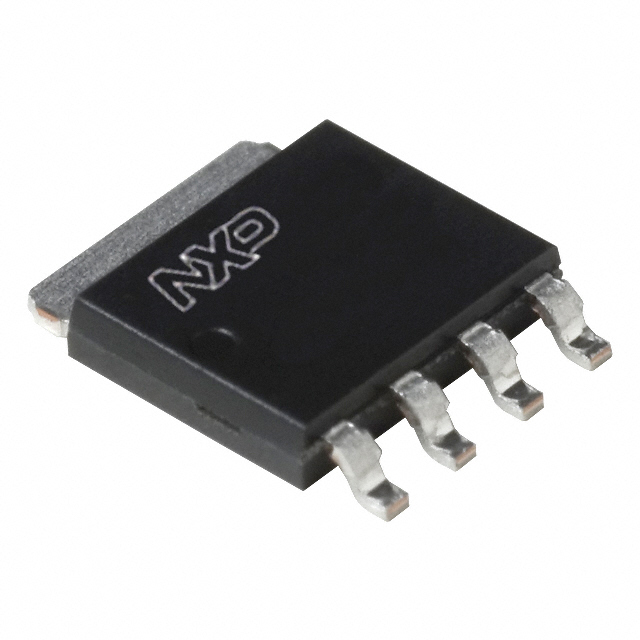

| Part Number | PSMN1R3-30YL,115 | Manufacturer | Nexperia |
|---|---|---|---|
| Description | MOSFET N-CH 30V 100A LFPAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 140814 pcs | Data sheet | PSMN1R3-30YL,115.pdf |
| Vgs(th) (Max) @ Id | 2.15V @ 1mA | Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | LFPAK56, Power-SO8 |
| Series | - | Rds On (Max) @ Id, Vgs | 1.3 mOhm @ 15A, 10V |
| Power Dissipation (Max) | 121W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | SOT-1023, 4-LFPAK | Other Names | 1727-4276-2 568-4908-2 568-4908-2-ND 934063811115 |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 6227pF @ 12V | Gate Charge (Qg) (Max) @ Vgs | 100nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 100A (Tc) 121W (Tc) Surface Mount LFPAK56, Power-SO8 | Current - Continuous Drain (Id) @ 25°C | 100A (Tc) |
