Nexperia

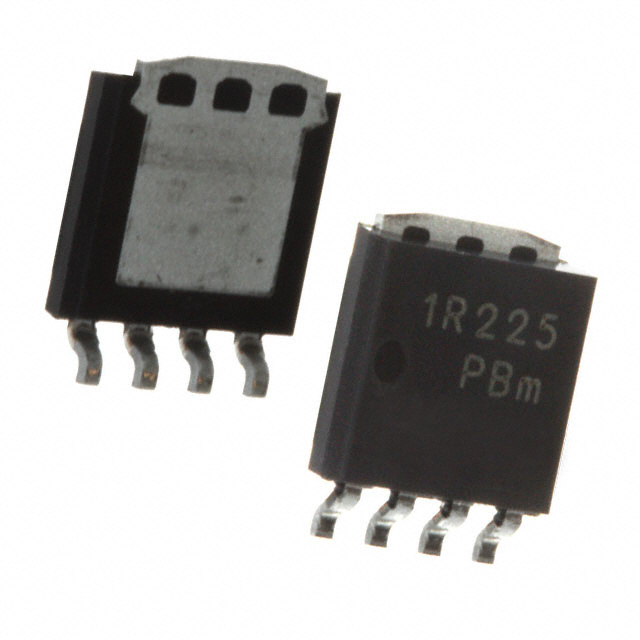

| Part Number | PSMN0R9-30YLDX | Manufacturer | Nexperia |
|---|---|---|---|
| Description | MOSFET N-CH 30V 300A 56LFPAK | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 123655 pcs | Data sheet | PSMN0R9-30YLDX.pdf |
| Vgs(th) (Max) @ Id | 2.2V @ 1mA | Vgs (Max) | ±20V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | LFPAK56, Power-SO8 |
| Series | - | Rds On (Max) @ Id, Vgs | 0.87 mOhm @ 25A, 10V |
| Power Dissipation (Max) | 291W | Packaging | Tape & Reel (TR) |
| Package / Case | SOT-1023, 4-LFPAK | Other Names | 1727-1858-2 568-11554-2 568-11554-2-ND 934068233115 PSMN0R9-30YLDX-ND |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 7668pF @ 15V | Gate Charge (Qg) (Max) @ Vgs | 109nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 30V |
| Detailed Description | N-Channel 30V 300A 291W Surface Mount LFPAK56, Power-SO8 | Current - Continuous Drain (Id) @ 25°C | 300A |
