Nexperia

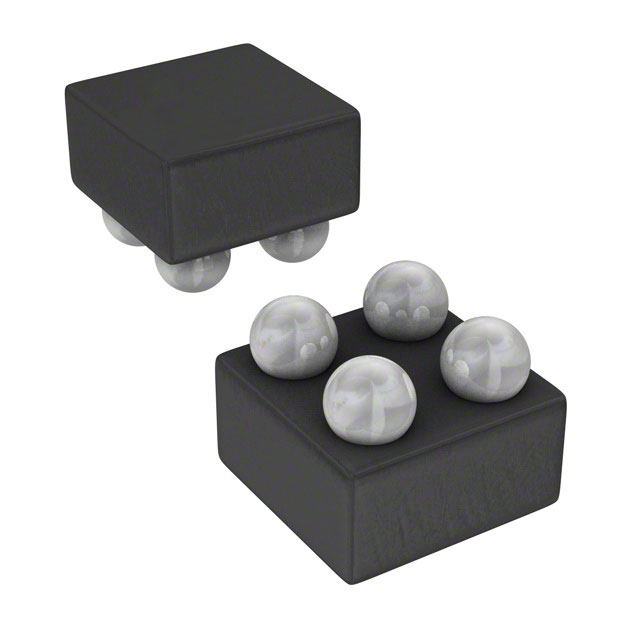

| Part Number | PMCM440VNEZ | Manufacturer | Nexperia |
|---|---|---|---|
| Description | MOSFET N-CH 12V 4WLCSP | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 812314 pcs | Data sheet | PMCM440VNEZ.pdf |
| Vgs(th) (Max) @ Id | 900mV @ 250µA | Vgs (Max) | ±8V |
| Technology | MOSFET (Metal Oxide) | Supplier Device Package | 4-WLCSP (0.78x0.78) |
| Series | - | Rds On (Max) @ Id, Vgs | 67 mOhm @ 3A, 4.5V |
| Power Dissipation (Max) | 400mW (Ta), 12.5W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | 4-XFBGA, WLCSP | Other Names | 1727-2274-2 568-12560-2 568-12560-2-ND 934068625084 |
| Operating Temperature | -55°C ~ 150°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds | 360pF @ 6V | Gate Charge (Qg) (Max) @ Vgs | 8.2nC @ 4.5V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V | Drain to Source Voltage (Vdss) | 12V |
| Detailed Description | N-Channel 12V 3.9A (Ta) 400mW (Ta), 12.5W (Tc) Surface Mount 4-WLCSP (0.78x0.78) | Current - Continuous Drain (Id) @ 25°C | 3.9A (Ta) |
