Nexperia
| Part Number | BUK6D23-40EX | Manufacturer | Nexperia |
|---|---|---|---|
| Description | BUK6D23-40E/SOT1220/SOT1220 | Lead Free Status / RoHS Status | |
| Quantity Available | 449509 pcs | Data sheet | BUK6D23-40EX.pdf |
| Vgs(th) (Max) @ Id | 2.7V @ 250µA | Vgs (Max) | ±20V |

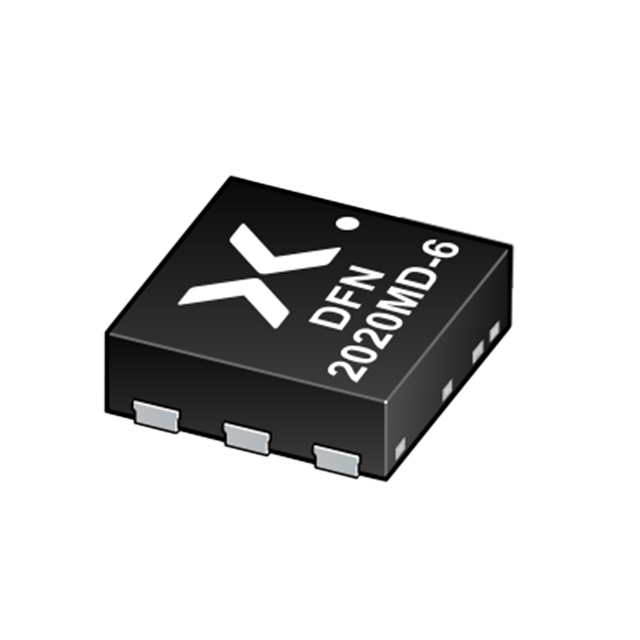

| Technology | MOSFET (Metal Oxide) | Supplier Device Package | DFN2020MD-6 |
| Series | Automotive, AEC-Q101, TrenchMOS™ | Rds On (Max) @ Id, Vgs | 23 mOhm @ 8A, 10V |
| Power Dissipation (Max) | 2.3W (Ta), 15W (Tc) | Packaging | Tape & Reel (TR) |
| Package / Case | 6-UDFN Exposed Pad | Other Names | 1727-8336-2 934660304115 BUK6D23-40EX-ND |
| Operating Temperature | -55°C ~ 175°C (TJ) | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 16 Weeks |
| Input Capacitance (Ciss) (Max) @ Vds | 582pF @ 20V | Gate Charge (Qg) (Max) @ Vgs | 19nC @ 10V |
| FET Type | N-Channel | FET Feature | - |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | Drain to Source Voltage (Vdss) | 40V |
| Detailed Description | N-Channel 40V 8A (Ta), 19A (Tc) 2.3W (Ta), 15W (Tc) Surface Mount DFN2020MD-6 | Current - Continuous Drain (Id) @ 25°C | 8A (Ta), 19A (Tc) |
