NVE Corporation
| Part Number | IL511-3E | Manufacturer | NVE Corporation |
|---|---|---|---|
| Description | DGTL ISO 2.5KV GEN PURP 8-SOIC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13376 pcs | Data sheet | IL511-3E.pdf |
| Voltage - Supply | 3 V ~ 5.5 V | Voltage - Isolation | 2500Vrms |
| Type | General Purpose | Technology | GMR (Giant Magnetoresistive) |
| Supplier Device Package | 8-SOIC | Series | IsoLoop® |
| Rise / Fall Time (Typ) | 1ns, 1ns | Pulse Width Distortion (Max) | 10ns |
| Propagation Delay tpLH / tpHL (Max) | 25ns, 25ns | Packaging | Tube |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | Other Names | 390-1118 390-1118-5 390-1118-ND IL5113E |
| Operating Temperature | -40°C ~ 85°C | Number of Channels | 2 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Isolated Power | No | Inputs - Side 1/Side 2 | 2/0 |

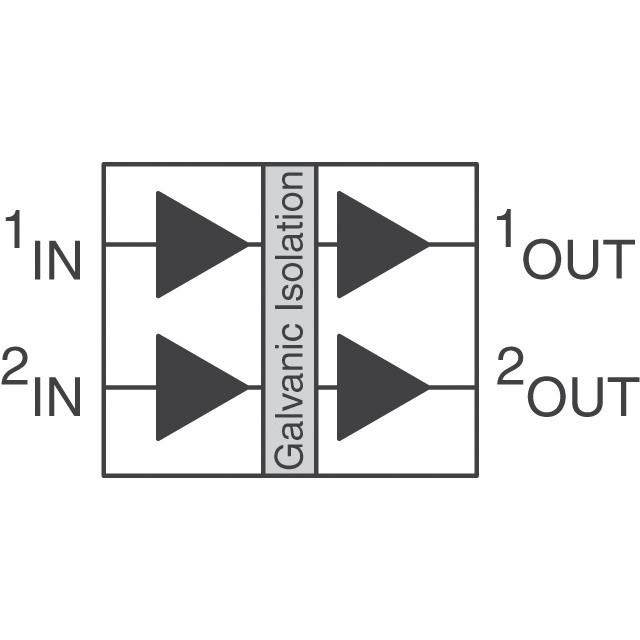

| Detailed Description | General Purpose Digital Isolator 2500Vrms 2 Channel 2Mbps 30kV/µs CMTI 8-SOIC (0.154", 3.90mm Width) | Data Rate | 2Mbps |
| Common Mode Transient Immunity (Min) | 30kV/µs | Channel Type | Unidirectional |
