IL260-3E

NVE Corporation

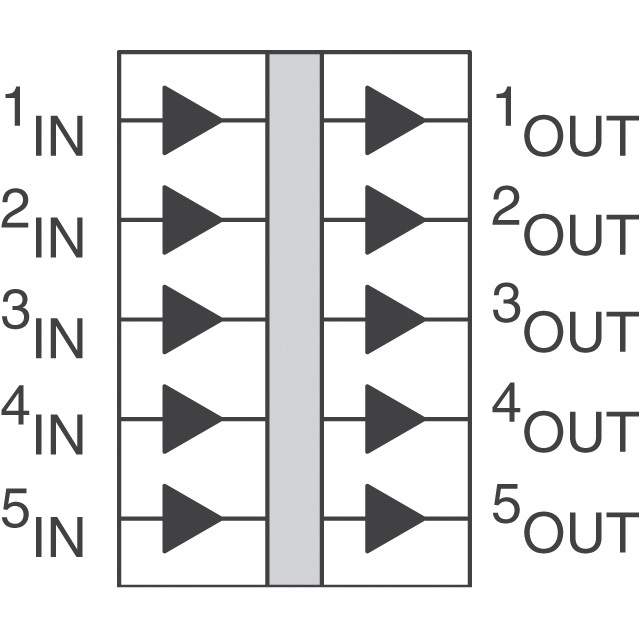

Image may be representation. See specifications for product details.

Product Overview

Part Number:	IL260-3E
Manufacturer/Brand:	NVE Corporation
Product description	DGTL ISO 2.5KV GEN PURP 16SOIC
Datasheets:
RoHs Status	Lead free / RoHS Compliant
Stock Condition	7496 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 7496 pcs

Reference Price (In US Dollars)

1 pcs: $4.046

10 pcs: $3.641

25 pcs: $3.318

100 pcs: $2.994

300 pcs: $2.751

500 pcs: $2.508

1000 pcs: $2.185

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$4.046

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of IL260-3E

Part Number	IL260-3E	Manufacturer	NVE Corporation
Description	DGTL ISO 2.5KV GEN PURP 16SOIC	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	7496 pcs	Data sheet
Voltage - Supply	3 V ~ 5.5 V	Voltage - Isolation	2500Vrms
Type	General Purpose	Technology	GMR (Giant Magnetoresistive)
Supplier Device Package	16-SOIC	Series	IsoLoop®
Rise / Fall Time (Typ)	1ns, 1ns	Pulse Width Distortion (Max)	3ns
Propagation Delay tpLH / tpHL (Max)	15ns, 15ns	Packaging	Tube
Package / Case	16-SOIC (0.154", 3.90mm Width)	Other Names	390-1069-5 IL2603E
Operating Temperature	-40°C ~ 85°C	Number of Channels	5
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Isolated Power	No	Inputs - Side 1/Side 2	5/0
Detailed Description	General Purpose Digital Isolator 2500Vrms 5 Channel 110Mbps 30kV/µs CMTI 16-SOIC (0.154", 3.90mm Width)	Data Rate	110Mbps
Common Mode Transient Immunity (Min)	30kV/µs	Channel Type	Unidirectional
