AAT009-10E

NVE Corporation

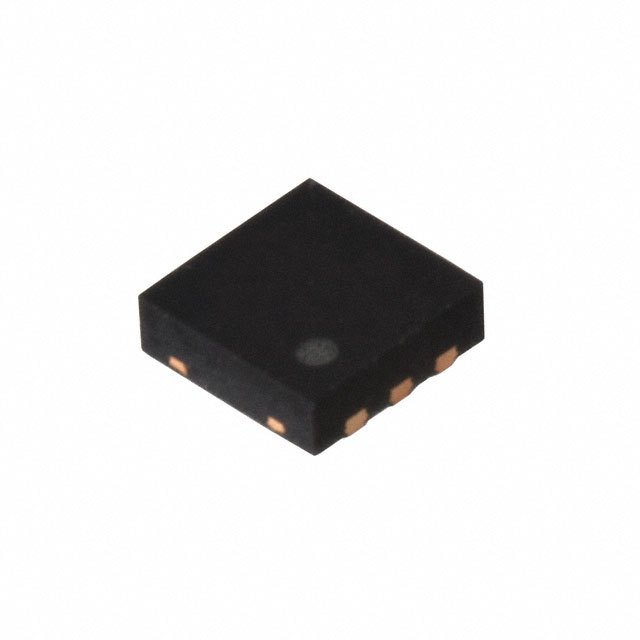

Image may be representation. See specifications for product details.

Product Overview

Part Number:	AAT009-10E
Manufacturer/Brand:	NVE Corporation
Product description	SENSOR ANGLE 360DEG SMD
Datasheets:	AAT009-10E.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	55535 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

Download Product Details PDF

In Stock 55535 pcs

Reference Price (In US Dollars)

1000 pcs: $0.712

3000 pcs: $0.688

5000 pcs: $0.663

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.712

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of AAT009-10E

Part Number	AAT009-10E	Manufacturer	NVE Corporation
Description	SENSOR ANGLE 360DEG SMD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	55535 pcs	Data sheet	AAT009-10E.pdf
Voltage - Supply	5.5V	Termination Style	SMD (SMT) Tab
Technology	Magnetoresistive	Supplier Device Package	6-TDFN (2.5x2.5)
Series	AAT	Rotation Angle - Electrical, Mechanical	0° ~ 360°, Continuous
Resistance Tolerance	-	Resistance	10 MOhms
Packaging	Tape & Reel (TR)	Package / Case	6-WDFN Exposed Pad
Output Signal	-	Output	Resistive
Other Names	391-1070-2	Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	7 Weeks	Linearity	-
Linear Range	-	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
For Measuring	Angle	Detailed Description	Magnetoresistive Sensor Angle External Magnet, Not Included SMD (SMT) Tab
Actuator Type	External Magnet, Not Included
