NMB Technologies Corp.

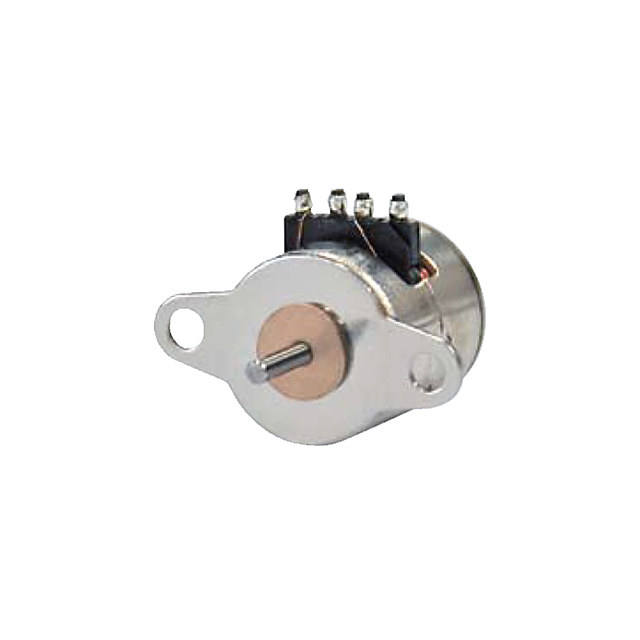

| Part Number | SM8-F20-HHE0 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | STEPPER MOTOR PM BIPOLAR 5V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2616 pcs | Data sheet | SM8-F20-HHE0.pdf |
| Weight | - | Voltage - Rated | 5VDC |
| Type | Permanent Magnet | Torque - Holding (oz-in / mNm) | - |
| Termination Style | Through Hole | Steps per Revolution | 20 |
| Step Angle | 18° | Size / Dimension | Round - 0.315" Dia (8.00mm) |
| Series | - | Rotor Inertia | - |
| Other Names | P121386 Q9250466 SM8-20 SM8-20-ND |
Operating Temperature | -10°C ~ 50°C |
| Mounting Hole Spacing | 0.433" (11.00mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Shaft and Bearing | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Round Shaft |
| Diameter - Shaft | 0.039" (1.00mm) | Detailed Description | Bipolar Stepper Motor 5VDC |
| Coil Type | Bipolar | Coil Resistance | 21 Ohms |
| Approvals | - | Accuracy | - |
