NMB Technologies Corp.
| Part Number | PM42L-048-HHC9 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|

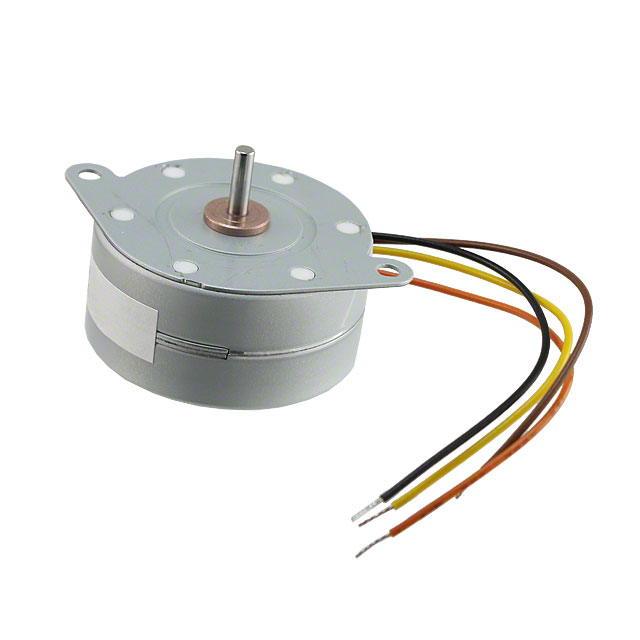

| Description | STEPPER MOTOR PM BIPOLAR 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2737 pcs | Data sheet | 1.PM42L-048-HHC9.pdf2.PM42L-048-HHC9.pdf3.PM42L-048-HHC9.pdf |
| Weight | - | Voltage - Rated | 24VDC |
| Type | Permanent Magnet | Torque - Holding (oz-in / mNm) | 17.6 / 124 |
| Termination Style | Wire Leads | Steps per Revolution | 48 |
| Step Angle | 7.5° | Size / Dimension | Round - 1.650" Dia (42.00mm) |
| Series | PM | Rotor Inertia | - |
| Other Names | P14343 PM42L-048-HHC9B PM42L048HHC9 |
Operating Temperature | - |
| Mounting Hole Spacing | 1.950" (49.48mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Shaft and Bearing | 0.472" (12.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Round Shaft |
| Diameter - Shaft | 0.118" (3.00mm) | Detailed Description | Bipolar Stepper Motor 600mA 24VDC |
| Current Rating | 600mA | Coil Type | Bipolar |
| Coil Resistance | 7 Ohms | Approvals | - |
| Accuracy | - |
