PM25S-048-HHC4

NMB Technologies Corp.

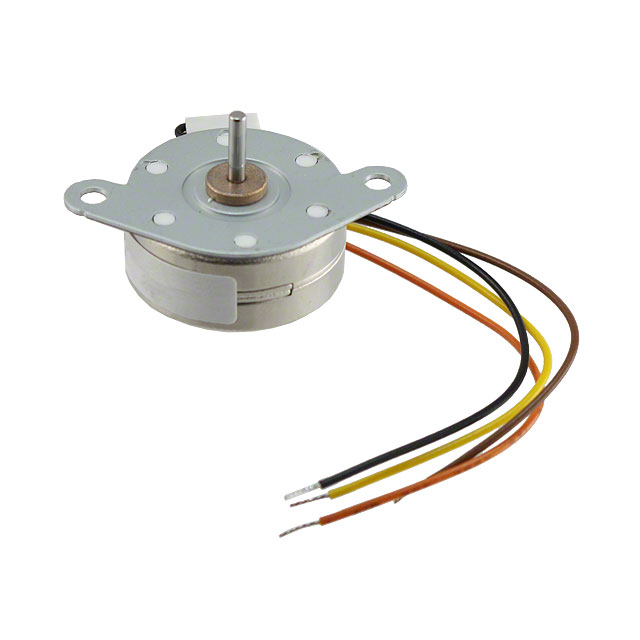

Image may be representation. See specifications for product details.

Product Overview

Part Number:	PM25S-048-HHC4
Manufacturer/Brand:	NMB Technologies Corp.
Product description	STEPPER MOTOR PM BIPOLAR 24V
Datasheets:	1.PM25S-048-HHC4.pdf 2.PM25S-048-HHC4.pdf 3.PM25S-048-HHC4.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	3283 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3283 pcs

Reference Price (In US Dollars)

1 pcs: $12.04

5 pcs: $11.675

10 pcs: $10.946

25 pcs: $10.581

50 pcs: $10.216

100 pcs: $9.851

250 pcs: $9.705

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$12.04

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of PM25S-048-HHC4

Part Number	PM25S-048-HHC4	Manufacturer	NMB Technologies Corp.
Description	STEPPER MOTOR PM BIPOLAR 24V	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	3283 pcs	Data sheet	1.PM25S-048-HHC4.pdf 2.PM25S-048-HHC4.pdf 3.PM25S-048-HHC4.pdf
Weight	-	Voltage - Rated	24VDC
Type	Permanent Magnet	Torque - Holding (oz-in / mNm)	3.5 / 25
Termination Style	Wire Leads	Steps per Revolution	48
Step Angle	7.5°	Size / Dimension	Round - 0.984" Dia (25.00mm)
Series	PM	Rotor Inertia	-
Other Names	P14338 PM25S-048-HHC4B PM25S048HHC4	Operating Temperature	-
Mounting Hole Spacing	1.260" (32.00mm)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Manufacturer Standard Lead Time	5 Weeks	Length - Shaft and Bearing	0.394" (10.00mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Features	Round Shaft
Diameter - Shaft	0.079" (2.00mm)	Detailed Description	Bipolar Stepper Motor 600mA 24VDC
Current Rating	600mA	Coil Type	Bipolar
Coil Resistance	16 Ohms	Approvals	-
Accuracy	-
