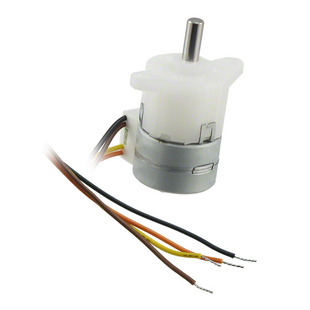

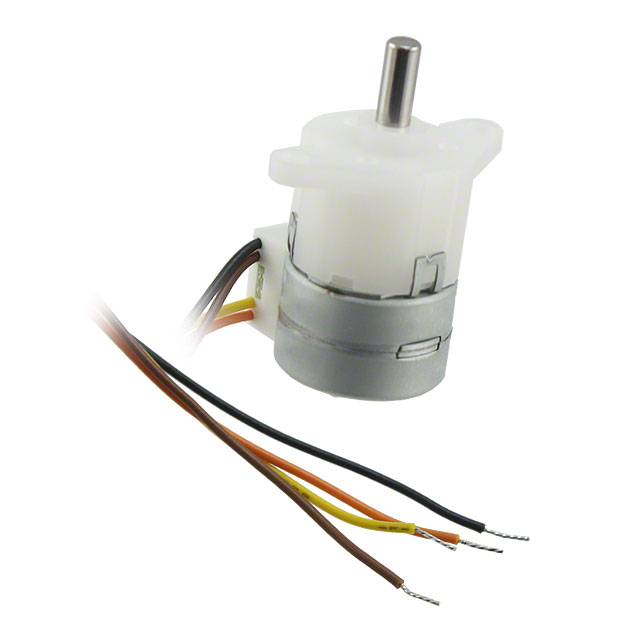

NMB Technologies Corp.
| Part Number | PG15S-D20-HHB9 | Manufacturer | NMB Technologies Corp. |
|---|---|---|---|
| Description | STEP MOTOR PM GEARED BIPOLAR 15V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2790 pcs | Data sheet | 1.PG15S-D20-HHB9.pdf2.PG15S-D20-HHB9.pdf |
| Weight | 0.029 lb (13.15g) | Voltage - Rated | 15VDC |
| Type | Permanent Magnet Gear Motor | Torque - Holding (oz-in / mNm) | 21.2 / 150 |
| Termination Style | Wire Leads | Steps per Revolution | 2048 |
| Step Angle | 0.176° | Size / Dimension | Round - 0.591" Dia (15.00mm) |
| Series | PG | Rotor Inertia | - |
| Other Names | P14333 PG15S-D20-HHB9B PG15S-D20-HHB9D PG15S-D20-X102 PG15S-D20-X102-ND PG15SD20HHB9 |
Operating Temperature | - |
| Mounting Hole Spacing | 0.787" (20.00mm) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 5 Weeks | Length - Shaft and Bearing | 0.354" (9.00mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | Round Shaft |
| Diameter - Shaft | 0.118" (3.00mm) | Detailed Description | Bipolar Stepper Motor 100mA 15VDC |
| Current Rating | 100mA | Coil Type | Bipolar |
| Coil Resistance | 10 Ohms | Approvals | - |
| Accuracy | - |
